High-Speed Balanced Optical Detection Module
Product Features
Easy to use
Response Time < 10ps
High saturated optical power
Integrated low noise amplifier
DC 12V single power supply
Spectral range 1000 ~ 1700nm
3dB Bandwidth 10G/25G/40GHz
Common Mode Rejection Ratio 25dB
Can be customized
Application Field
OTDR
Laser radar
Coherent optical communication
Brillouin optical fiber sensing system
Optical coherence tomography (OCT)
Product introduction
These series optical detection module integrates two matched analog PIN detectors with high bandwidth and high linearity and a low-noise broadband transimpedance amplifier. It has the characteristics of high gain, high sensitivity, optional coupling mode and high common-mode rejection ratio, which can effectively reduce the common-mode noise of input light and improve the signal-to-noise ratio of the system. The power supply of the module is positive 12 V, the input of the module is a common single-mode optical fiber, the error of the length of the optical fiber is less than 1 mm, and the electrical signal is output from the SMA/2.92 mm port. The module is mainly used in the fields of coherent optical communication, laser radar, optical fiber coherent tomography, optical fiber sensing system and the like.
Technical parameters
|
InGaAs high-speed balanced photodetector module (fiber input) |
|||||
|
Parameter |
HC-BPRM-10G-I-FA |
HC-BPRM-25G-I-FA |
HC-BPRM-40G-I-FA |
||
|
Detector type |
InGaAs / PIN |
||||
|
Optical input |
FC/APC Flange |
||||
|
Wavelength range |
1000-1700nm |
||||
|
Peak responsivity |
0.94A/W @ 1550 nm |
0.85A/W @ 1550 nm |
0.7A/W @ 1550 nm |
||
|
Crosstalk |
>-40dB |
||||
|
Bandwidth (3dB) |
High frequency |
RF OUTPUT |
>10GHz |
>25GHz |
>32GHz |
|
Low frequency |
<30K |
<30K |
<30K |
||
|
Conversion Gain @ 50ohm |
500 V/W |
500 V/W |
500 V/W |
||
|
Rise time |
35ps |
14ps |
10ps |
||
|
Common Mode Rejection Ratio (CMRR) |
>25 dB, Type 30dB |
>20 dB, Type 25dB |
>20 dB, Type 25dB |
||
|
Saturated optical power |
Out of balance |
4mW |
4mW |
0.5mW |
|
|
Balance |
10mw |
10mw |
4mW |
||
|
Coupling mode |
AC only |
||||
|
Output impedance |
50Ω |
||||
|
Total output noise voltage |
<1mVRMS |
<1mVRMS |
<2mVRMS |
||
|
Maximum output voltage |
2Vpp |
2Vpp |
300mVpp |
||
|
Output port |
SMA(f) |
2.92(f) |
|||
General parameters
|
Parameter |
Typical value |
Remark |
|
Power connector |
2 p feedthrough capacitor |
|
|
Power supply |
DC 12V，<100mA |
Operating voltage |
|
Photodamage threshold |
10mW |
Average power |
|
Operating temperature |
-20~65°C |
|
|
Fiber type |
SMF-28e |
|
|
Fiber optic connector |
2.0mm Narrow Key FC/APC |
|
|
Fiber length |
1m 10 cm, two-way offset < 1mm |
Add connector, inside the module |
Characteristic curve
Typical spectral response curves
Frequency Response Curve ( HC-BPRM-10G-I-FA, Input + & Input-)
Frequency Response Curve ( HC-BPRM-25G-I-FA, Input + & Input-)

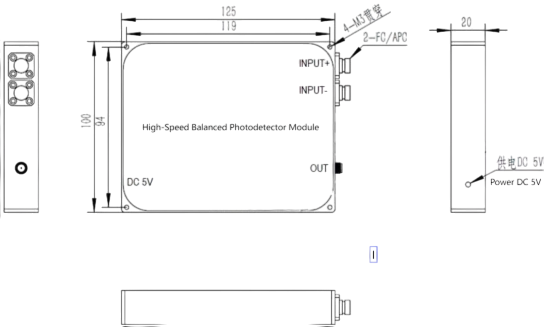

Mechanical Dimension (in mm)
If you need more supports , Please contact us .
