4×4 Mechanical Optical Switch Matrix Module

This product is an optical switch for switching optical paths based on mechanical motion, with 4 inputs and 4 outputs. With low cost and high reliability, it still has certain application value in the field of optical communication and fibre optic sensing, especially suitable for cost-sensitive scenarios that do not require high switching speed.

Specification

Resources

FSW-4×4-SM-L-1310/1550-90-05-FA Optical Switch is an ideal component for OADM，OXC，

system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.

Features

Low insertion loss: reduce the loss of optical signal in the switch.

High extinction ratio: effectively isolate different optical paths and reduce crosstalk.

High reliability: stable mechanical structure and long service life.

Applications

Optical switching

Network monitoring and testing

Multiplexed sensing

Industrial control

Technical Parameters

Parameters	Unit	FSW-4×4-SM-L-1310/1550-90-05-FA
Wavelength Range	nm	1260 ~ 1650
Test Wavelength	nm	1310 / 1550
Insertion Loss	dB	≤2.5
Return Loss	dB	SM ≥ 50
Crosstalk	dB	SM ≥ 55
PDL	dB	≤ 0.15
WDL	dB	≤ 0.35
Repeatability	dB	≤ ±0.05
Power Supply	V	5.0 ± 5%
Durability	Cycles	≥ 10 Million
Switching Time	ms	≤8
Optical Power	mW	≤500
Switch type		latching
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	(L)115×(W)98×(H)15 ±0.2

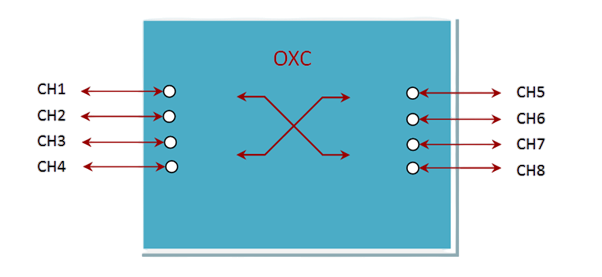

Optical Route

Dimension(mm)

Pin Configurations

Pin No.	Signal Name	I / O	Description
1	1D0	Input	TTL, COM 1 Channel selection bit 0
2	1D1	Input	TTL, COM 1 Channel selection bit 1
3	2D0	Input	TTL, COM 2 Channel selection bit 0
4	2D1	Input	TTL, COM 2 Channel selection bit 1
5	/EN	Input	Channel Selection Enabled.
6	RST	Input	Reset
7	VCC	Input	5.0±5% VDC Power Supply (max 250mA).
8	GND	Input	Ground
9	3D0	Input	TTL, COM 3 Channel selection bit 0
10	3D1	Input	TTL, COM 3 Channel selection bit 1
11	4D0	Input	TTL, COM 4 Channel selection bit 0
12	4D1	Input	TTL, COM 4 Channel selection bit 1
13	1S0	Output	TTL, COM 1 Switch status output bit 0
14	1S1	Output	TTL, COM 1 Switch status output bit 1
15	2S0	Output	TTL, COM 2 Switch status output bit 0
16	2S1	Output	TTL, COM 2 Switch status output bit 1
17	3S0	Output	TTL, COM 3 Switch status output bit 0
18	3S1	Output	TTL, COM 3 Switch status output bit 1
19	4S0	Output	TTL, COM 4 Switch status output bit 0
20	4S1	Output	TTL, COM 4 Switch status output bit 1

If you need more support, please contact us.
