1×2 PM Magnet Optical Switch
Feature
Fast switching speed
Non-moving component
Low power consumption
Extremely stable latch mode
Excellent stability and reliability
Application
System monitoring
High speed protection
Test and measurement
Fiber optic sensing system
Technical Parameter
|
Item |
Unit |
Parameters |
Notes |
|
|
Unbidirectional |
Bidirectional |
|||
|
Wavelength Range |
nm |
1525~1565 |
Other band optional |
|
|
Insertion Loss |
dB |
0.8(Typ.);1.1(Max.) |
0.8(Typ.);1.1(Max.) |
|
|
Return Loss |
dB |
≥40 (Typ 50) |
≥40 |
|
|
Cross-talk |
dB |
≥40 (Typ 50) |
≥40 |
|
|
ER |
dB |
≥18 |
||
|
WDL |
dB |
≤0.3 |
||
|
TDL |
dB |
≤0.3 |
||
|
Repeatability |
dB |
+/- 0.01 |
||
|
Durability |
cycles |
Regular (>100Billions) ; Ultra-fast(>1000Billions) |
||
|
Switching Speed |
μs |
Regular (50~200); Ultra-fast (5~20) |
Other speed optional |
|
|
Operating Temperature |
P0PC |
-5~70 |
||
|
Storage Temperature |
P0PC |
-40~85 |
||
|
Maximum Optical Power |
mW |
500 |
High power optional |
|
|
Dimension( L×W×H ) |
mm |
32.8x8×7 |
（Cap with end 51.8x8x7） |
|
Note:
1. All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.
2. Specifications are subject to change without notice.
Pin Configurations
|
Parameters |
Specifications |
Unit |
|
|
Regular |
Ultra-fast |
||
|
Switching Speed |
50~200 |
5~20 |
μs |
|
Switching Voltage (VCC) |
3(+/-5%) |
5~6 |
V |
|
Switching Current |
< 100 |
< 350 |
mA |
|
Driving Mode |
Voltage or Pulse Driving |
Pulse Driving |
NA |
|
Pulse Width (typical) |
1000 |
20 |
μs |
|
Claim Frequency |
<800 |
< 3000 |
Hz |
Control pin definition
Irreversible:
|
Pin1 |
Pin2 |
The Optical OutputPort |
|
1(Voltage = VCC) |
0(Voltage = GND) |
IN→OUT1 |
|
0(Voltage = GND) |
1(Voltage = VCC) |
IN→OUT2 |
Reversible：
|
Pin1 |
Pin2 |
The Optical Output Port |
|
1(Voltage = VCC) |
0(Voltage = GND) |
IN ↔OUT1 |
|
0(Voltage = GND) |
1(Voltage = VCC) |
IN ↔OUT2 |

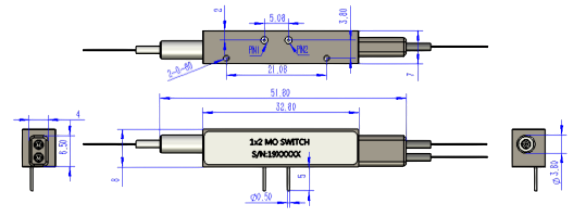

Dimension(mm)
Ordering Information: HC- PMMS-A-B-C-D-E-F-G-H
|
PMMS- |
A |
B |
C |
D |
E |
F |
G |
H |
|
Working Mode |
Switching Speed |
Operating Wavelength |
Axis Type |
Fiber Tuber |
Fiber Length |
Fiber Type |
Connector Type |
|
|
1.Regular 2. Bidirectional
|
1.50~200us 2.5~20us 3. Others |
1.C Band1525~1565 nm 2. L Band 1565-1615 nm 3. C & L Band 4. Others
|
1.B(Both of axis working) 2.F (Fast axis blocked) |
1.250μm 2. 900μm 3. Others |
1.0.5 +/- 0.1 m 2. 1.0 +/- 0.1 m 3. Others |
1.PM98 2.PM15 3.PM13 4.Others |
0.No Connector 1. FC/UPC 2. FC/APC 3. SC/UPC 4. SC/APC 5. LC/PC 6. MU/PC 7. Others |
If you need more support , Please contact us.
