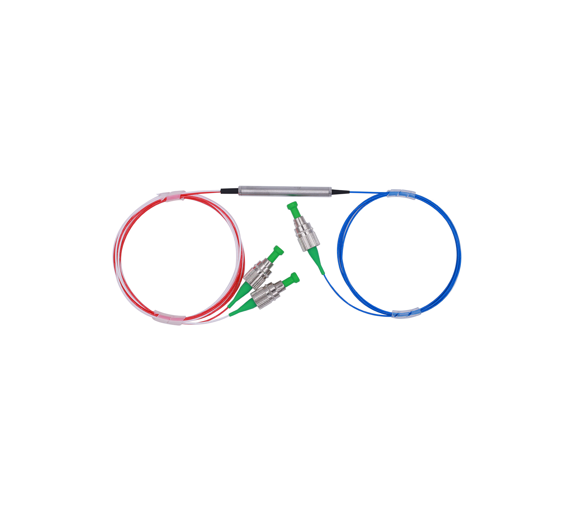

3 port PM Circulator

It is a high-end optical device that combines non-reciprocal optical routing and polarisation preservation capabilities, capable of transmitting optical signals in a directional manner (Port 1→2→3) while strictly preserving the polarisation of the incoming light (e.g., in the direction of linear polarisation)

Specification

Resources

Features

Compact size

Low insertion loss

High stability and reliability

Epoxy-free on Optical PathF

Application

Optical fiber sensor

Add/drop multiplexing

Dispersion compensation

Two-way transmission system

Instrument test and measurement

Technical specification

Type		3 Port
Operating Wavelength (nm)		1310 or 1550
Bandwidth (nm)		±30
Typ. Isolation (dB)		46
Isolation (dB)		≥40
Typ. Insertion Loss (dB)		0.7
Insertion Loss (dB) @,-5 to +70（1310/1550nm）		≤0.9
Extinction Ratio (dB)	Type B (Both of axis working)	≥20
	Type F (Fast axis blocked)	≥22
Cross Talk (dB)		≥50
Return Loss (dB)		≥50
Fiber Type		1310nm :PM 1310;1550nm:PM1550
Package Dimension (mm)		φ5.5×L50
Maximum Power Handling (mW)		≤300
Operating Temperature (℃)		-0 to +70
Storage Temperature (℃)		-40～+85

*Above specifications are for devices without the connectors.

*Type A is Double Stage,TypeB is Single Stage.

*Fast Axis Blocking *For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower. *The PM fiber and the connector key are aligned to the slow axis. fast axis is blocked.

Product Dimension

Ordering information HC-PMOC-A-B-C-D-E-F

PMOC

Wavelength

Ports

Axis Alignment

Pigtail Type

Length

Connector

1310=1310nm

1550=1550nm

3=3 Ports　

F=Fast Axis Blocked

B=Both Axis Working

1=250um

2=900um loose tube

3=3mm loose tube

H=0.5m

8=0.8m

1=1.0m

5=1.5m

2=2m

0=None

1=FC/UPC

2=FC/APC

3=SC/APC

4=SC/UPC

6=LC/PC

If you need more support , Please contact us .
