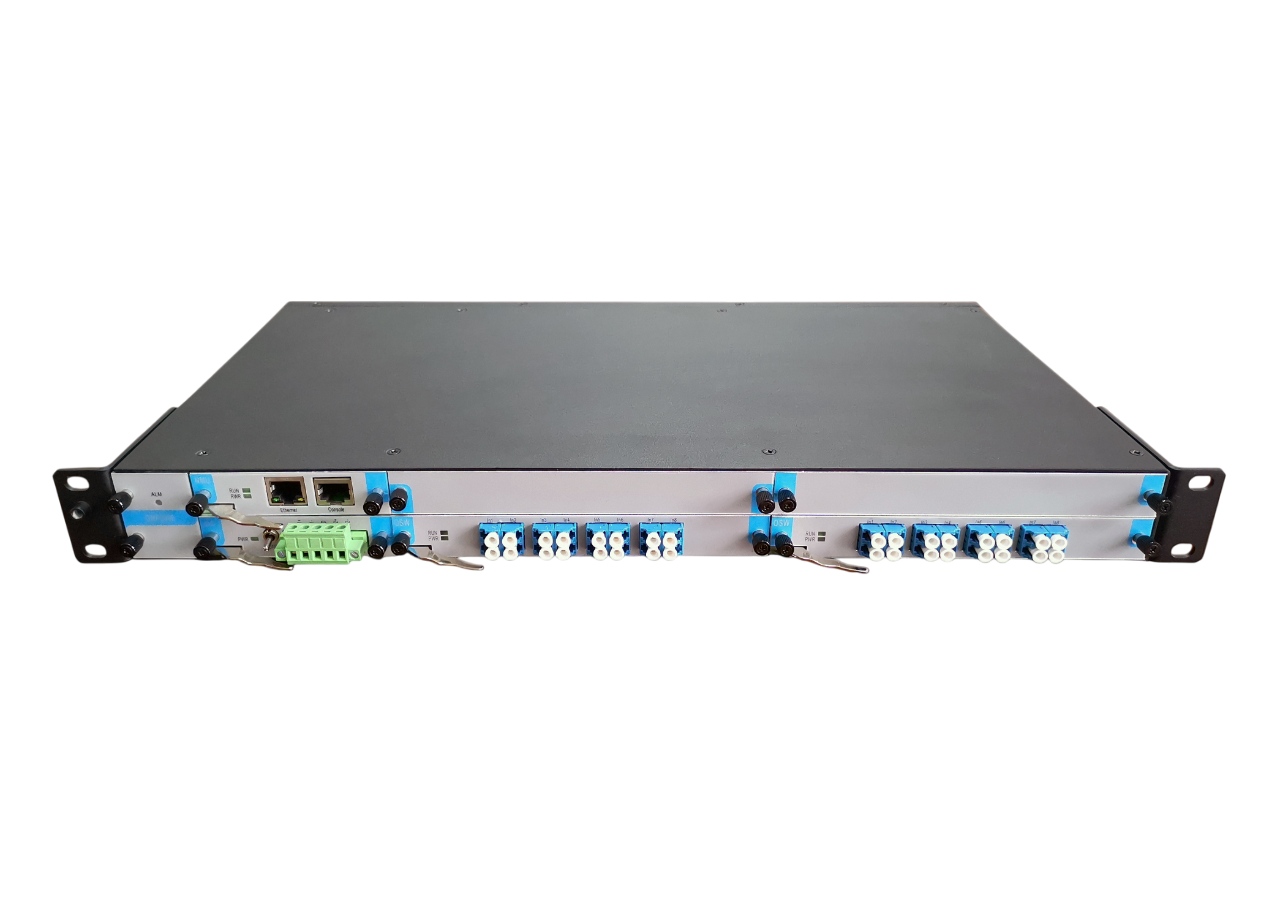

16×16 Rack Mount MEMS Matrix Optical Switch
Features
(1) It is characterized by small insertion loss and fast switching speed.
(2) LCD display screen is adopted to display optical path status in a very intuitive way, which is convenient for users to operate.
(3) Optical path switching can be set through the panel keys and serial port instructions.And can lock the keystroke operation through the serial port instruction.
Specification:
|
Type no. |
FSW-16X16-1U-FC |
|
Working wavelength |
1260 ～ 1650nm |
|
Test the wavelength |
1310 nm |
|
Insertion loss |
Typ: ＜2.0 dB，Max: ＜2.5dB |
|
Repetitive |
≤±0.1 dB |
|
Return loss |
≥45dB |
|
Crosstalk |
≥50dB |
|
Wavelength dependent loss |
≤0.50 |
|
Polarization dependent loss |
≤0.15 |
|
Switch time |
≤ 50ms |
|
Optical fiber type |
SM（9/125um） |
|
Connector form |
FC/PC |
|
Monitor the port |
RJ45 |
|
Working power supply |
AC: 85 ～ 264 V（50/60Hz） |
|
Working temperature |
-10 ～ + 70℃ |
|
Storage temperature |
-50 ～ + 70°C |
|
The case type |
19 "standard 2U rack（483×350×89mm） |
Light path indicates
Schematic diagram of internal optical path of 16×16 optical switch
Description:：You cannot have two inputs to choose the same output .
Matters need to pay attention
(1) When using the device, all ports must be connected correctly according to the optical connection instructions.
(2) The power supply shall be grounded and the input power voltage shall be guaranteed within the range required by the equipment.
(3) If there is sudden interference and the host is abnormal, it should be shut down before processing.
(4) The optical input port must be well connected and accurately positioned, otherwise the measurement result and insertion loss may be incorrect.
(5) It is normal to have slight vibration or sound when switching optical channels.
If you need support, Please contact us.
