WDM-Board

Wavelength : 1600-1670nm at T port

contact us:lina@glhcoptical.com

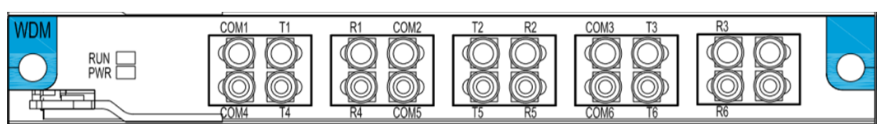

Outline:




Function Description:

The WDM Board is used for multiplexing and de-multiplexing the different wavelength

between the traffic optical pulse and OTDR detective optical pulse in online test mode.



Specifications:

Wavelength : 1600-1670nm at T port

1260-1580nm at R port

Insertion loss : ≤ 0.8dB

Transmission isolation : ≥ 40dB

Reflection isolation : ≥ 15dB

Optical Channels : up to 6 ports
