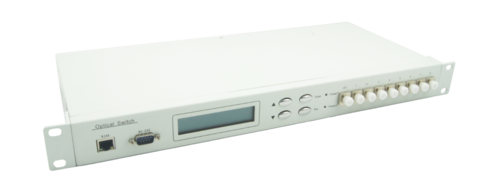

RackMount Type Optical Switch
1×N rack-mounted optical switch is an optical path control device, which can switch optical paths.The product can manually select and switch the working optical path through the panel button, or control the optical path switch through RS232 serial port and Ethernet port, or set the frequency to automatically scan the optical path to be monitored and switched.In optical communication projects, it is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic switching and optical sensor multi-point dynamic monitoring system;The optical testing system is used for optical fiber, optical devices, network and field engineering optical cable testing.Optical device installation and adjustment.
Features
Low loss and high reliability
The LCD displays the working optical path directly
Standard RS232 serial port, Ethernet interface
Applications
Optical fiber loop
Automatic measurement
Optical fiber network remote monitoring
Technical Parameters
|
Model |
Unit |
HC-FSW-1×N-U |
|||
|
Insertion loss |
dB |
1 |
16 |
32 |
64 |
|
Typ:1.0 Max:1.2 |
Typ:1.2 Max:1.4 |
Typ:1.4 Max:1.6 |
Typ:1.8 Max:2.2 |
||
|
Operating wavelength (optional) |
nm |
800~1330 |
1260∼1650 |
||
|
Test wavelength (optional) |
nm |
850/980/1310 |
1310/1490/1550/1625/1650 |
||
|
Return loss |
dB |
SM≥50、MM≥30 |
|||
|
Channel Crosstalk |
dB |
SM≥55、MM≥35 |
|||
|
Polarization dependent loss |
dB |
≤0.05 |
|||
|
Wavelength dependent loss |
dB |
≤0.25 |
|||
|
Temperature-dependent losses |
dB |
≤0.25 |
|||
|
Repeatability |
dB |
≤±0.02 |
|||
|
Service life |
Times |
107 |
|||
|
Transmit optical power |
mW |
≤500 |
|||
|
Switching time |
ms |
≤ 10 (sequential switching of adjacent channels) |
|||
|
Operating temperature |
°C |
-10～+50 |
|||
|
Storage temperature |
°C |
-40~+85 |
|||
|
Power supply |
V |
AC 85-264V,50/60Hz or DC(36-72)V |
|||
|
Module dimensions |
mm |
1U L483xW303xH44 (Up to 24 Channels) |
|||
|
2U L483xW303xH89 (Up to 64 channels) More channels can be customized, and the chassis size can be specially designed |
|||||
Ordering information HC- RackFSW-N-A-B-B-D-E-F
|
N |
A |
B |
C |
D |
E |
F |
|
Channel |
Package spec |
Mode |
Wavelength |
Voltage Type |
Fiber Type |
Connector |
|
1~128 |
1U 2U 3U 4U |
S: SM M:MM |
85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm X:Others |
AC: 85-264V DC: 36-72V AC/ DC: 220V＆48V |
5:50/125 6:62.5/125 9: 9/125 X: Others Internal optical switch module optical Fiber type |
FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others |
