APD Avalanche Photodetector module
Product introduction
HC-APRM series APD avalanche photodetection module adopts imported APD avalanche photodiodes with high gain, fast response and low dark current. It integrates low-noise broadband transimpedance amplifier, boost and temperature compensation circuits, and has the characteristics of high gain and high sensitivity. The power supply of the module is positive 12 V, and the input optical interface can be optical fiber interface or space incidence. The optical fiber interface is a universal interface for single-mode and multimode optical fibers; multiple photosensitive surfaces can be selected during space incidence, and the external thread adapter for external optical antenna is provided as standard; the electric signal is output from the SMA port, which is very suitable for the detection of weak light signals and the measurement of short pulse signals, and is mainly used in the fields of optical detection, space laser communication, laser radar, distributed optical fiber sensing system, etc.
Product features
Si & InGaAs APD
3dB bandwidth up to 1.5 G
Response Time Min. <0.2ns
Integrated Amplifier Circuit
Integrated boost and temperature compensation circuit
Low noise, high gain
φ20mm optical antenna with external thread
Equipped with M4 female fixing holes
Single 12V power supply
Compact 47x42x26 mm
SMA output
Can be customized
Scope of application
Ns optical pulse detection
Laser radar
Space laser communication
Distributed optical fiber sensing system
Optical detection
Optional
Photosensitive surface
Bandwidth
Gain
Coupling mode
Digital TTL level output
Technical parameters
|
Si APD optical detection module |
|||||||
|
Parameter |
HC-APRM-1G-S |
HC-APRM-350M-S |
HC-APRM-200M-S |
HC-APRM-100M-S |
HC-APRM-10M-S |
||
|
Detector type |
Si / APD |
||||||
|
Optical input |
Free Space, FC/APC, SMA905 |
||||||
|
Wavelength range |
400~1100nm |
||||||
|
Peak responsivity |
50A/W@800nm, M=100 |
||||||
|
Photosensitive surface diameter |
500um |
||||||
|
Bandwidth (3dB) |
30K~1GHz |
350MHz |
200M |
100M |
10M |
||
|
Conversion gain |
1x105 V/W |
1x105 V/W |
2x106 V/W |
2.5x106 V/W |
20x106 V/W @1064nm |
||
|
Rise time |
0.4ns |
0.9ns |
1.8ns |
3.5ns |
35ns |
||
|
Saturated optical power |
14uW |
36uW |
1.8uW |
1.5uW |
150nW |
||
|
Coupling mode |
AC coupling |
DC coupling |
|||||
|
Transimpedance |
50W |
||||||
|
Equivalent noise power NEP |
0.52pw/√Hz |
0.8pw/√Hz |
0.21 pw/√Hz |
0.13 pw/√Hz |
0.05 pw/√Hz |
||
|
Total output noise voltage |
12mV |
9mV |
36mV |
20 mV |
18mV |
||
|
Si APD optical detection module |
Si APD optical detection module (1064nm Enhanced) |
||
|
Parameter |
HC-APRM-400M-S-0.2 |
HC-APRM-5M-S-1mm |
HC-APRM-BW-1064 |
|
Detector type |
Si / APD |
Si/APD 1064nm enhanced |
|
|
Optical input |
Free Space or SMA905 |
||
|
Wavelength range |
400~1100nm |
||
|
Responsiveness |
55A/W@850nm, M=100 |
45A/W@1064nm,M=100 |
|
|
Photosensitive surface diameter |
200um |
1mm |
800um |
|
Bandwidth (3dB) |
400MHz |
5MHz |
10MHz |
|
Conversion gain |
2x105 V/W |
5x106 V/W |
16x106 V/W @1064nm |
|
Rise time |
0.9ns |
70ns |
35ns |
|
Saturated optical power |
18uW |
1.8uW |
180nW |
|
Coupling mode |
DC coupling |
||
|
Output impedance |
50W |
||
|
Equivalent noise power NEP |
0.5 pw/√Hz |
0.09 pw/√Hz |
0.06 pw/√Hz |
|
Total output noise voltage |
12mV |
6mV |
18mV |
|
InGaAs APD optical detection module (fiber input) |
|||||
|
Parameter |
HC-APRM-BW-I-FA |
||||
|
Detector type |
InGaAs / APD |
||||
|
Optical input |
Fiber FC/APC |
||||
|
Wavelength range |
800~1700nm |
||||
|
Peak responsivity |
9.5A/W@1550nm M=10 |
||||
|
Photosensitive surface diameter |
75um |
||||
|
Bandwidth (3dB) |
10MHz |
100MHz |
200 MHz |
500 MHz |
30K~1.5GHz |
|
Conversion gain |
2×106 V/W |
4×105 V/W |
3×105 V/W |
1.4x104 V/W |
1.4x104 V/W |
|
Rise time |
35ns |
3.5ns |
1.8ns |
0.7ns |
0.2ns |
|
Saturated optical power |
225 nW |
9uW |
12µW |
270µW |
140µW |
|
Coupling mode |
DC coupling |
AC coupling |
|||
|
Output impedance |
50W |
||||
|
Equivalent noise power NEP |
0.25 pw/√Hz |
0.83 pW/√Hz |
1.4 pW/√Hz |
2.2 pw/√Hz |
1.8 pw/√Hz |
|
Total output noise voltage |
9mV |
20mV |
36mV |
4mV |
6mV |
|
InGaAs APD optical detection module (spatial input) |
||||
|
Parameter |
HC-APRM-BW-I-FS |
|||
|
Detector type |
InGaAs / APD |
|||
|
Optical input |
Spatial light input |
|||
|
Wavelength range |
800~1700nm |
|||
|
Peak responsivity |
9.5A/W@1550nm M=10 |
|||
|
Photosensitive surface diameter |
200um |
200um |
500um |
500um |
|
Bandwidth (3dB) |
30K~1.5GHz |
200MHz |
150 MHz |
75MHz |
|
Conversion gain |
1.4x104V/W |
3x105V/W |
2x105V/W |
2x105V/W |
|
Rise time |
0.2ns |
1.8ns |
2.3ns |
4.6ns |
|
Saturated optical power |
140µW |
12µW |
18µW |
15uW |
|
Coupling mode |
AC coupling |
DC coupling |
||
|
Output impedance |
50W |
|||
|
Equivalent noise power NEP |
2.46 pW/√Hz |
1.5 pW/√Hz |
1.4 pW/√Hz |
1.44 pW/√Hz |
|
Total output noise voltage |
8mV |
38 mV |
20mV |
15mV |
General parameters
|
Parameter |
Typical value |
Remark |
|
Output electrical signal interface |
SMA(Female) |
|
|
Output DC Bias |
+/-3mV |
No input |
|
Maximum output voltage |
3.6V |
High resistance |
|
1.8V |
50W |
|
|
Power connector |
2 p Aviation Plug |
|
|
Power supply |
DC 12V |
Operating voltage |
|
<150mA |
Operating current |
|
|
Photodamage threshold |
10mW |
CW or peak power |
|
Operating temperature |
-20~65°C |
|
Characteristic curve

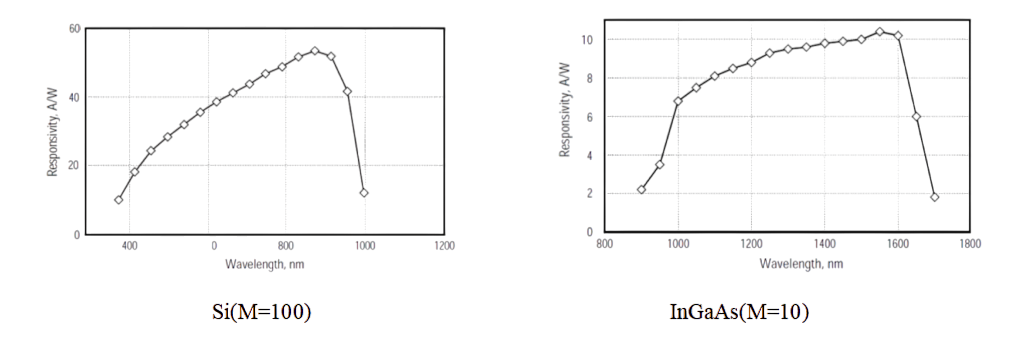

Typical spectral response
Mechanical dimensions in mm

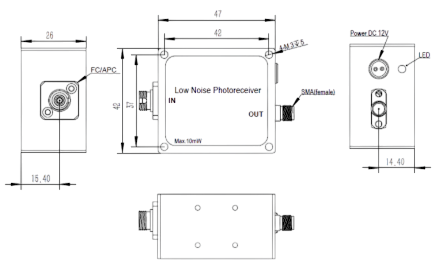

Type of fiber input

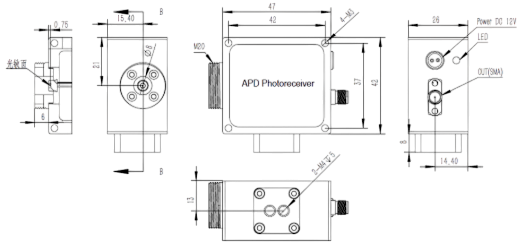

Spatial light input type I

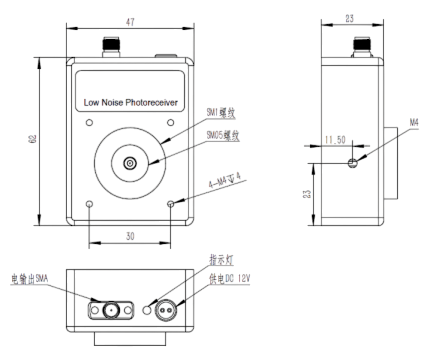

Spatial Light Input Type II
Ordering Information HC-APRM-BW-WL-FA/FS-XX
BW -- Operating Bandwidth
WL -- Detector Type
S---400-1100NM; I---800-1700NM;
FA/FS --- FA: FC/APC; FS: Free Space
XX--Other special requirements for photosensitive surface, signal format, etc.
If you need more technical documents, Please download.
