SOA pulse modulation module
Product introduction
HC-PLM series SOA pulse modulation module uses a semiconductor optical amplifier (SOA) as a core converter device to achieve ultra-narrow pulse width optical pulse generation. Its characteristics of fast rise time, high pulse extinction ratio, good stability and convenient use make it an ideal choice to replace electro-optic and acousto-optic modulators in various optical fiber sensing systems. But also can be apply to that aspects of quantum communication system, semiconductor test, homodyne coherent detection and the like.
Product features
Operating wavelength C-band
Optional integrated pulse source
Software-adjustable pulse width
Rise/fall time < 2 ns
Adjustment range 5 ns ~ 500 ns
PRF 1Hz-1MHz
Peak output power 10 mW
High extinction ratio > 50dB
Temperature control circuit with TEC
Optional internal and external trigger
DC 5V power supply
Module encapsulation
Scope of application
Optical fiber sensing system
Semiconductor testing
Microwave photonics
Technical parameters
|
Parameter |
Symbol |
Unit |
Minimum value |
Typical value |
Maximum value |
||
|
Operating wavelength |
l |
nm |
1510 |
|
1610 |
||
|
Peak power |
Pp |
mW |
|
10 |
|
||
|
Optical power stability |
DP |
dB |
|
|
0.1 |
||
|
Pulse extinction ratio |
ER |
dB |
50 |
|
|
||
|
Rise/Fall Time |
Tr/Tf |
ns |
2 |
3 |
- |
||
|
Repeat frequency |
F |
Hz |
1 |
|
1M |
||
|
Modulated signal format |
|
TTL/LVTTL |
|||||
|
Input and output optical fiber |
|
SMF-28e single mode fiber or polarization maintaining fiber |
|||||
|
Fiber optic connector |
|
FC/APC |
|||||
|
Pulse signal source (optional) parameter |
|||||||
|
Pulse width * |
Tw |
ns |
5 |
|
200 |
||
|
ns |
5 |
|
500 |
||||
|
Pulse width modulation step |
5-200ns |
|
ns |
|
1 |
|
|
|
5-500ns |
|
ns |
|
2.5 |
|
||
|
Repeat frequency |
F |
Hz |
|
|
1M |
||
|
External trigger input |
Signal format |
|
LVTTL(3.3V) |
||||
|
Trigger mode |
|
Rising edge trigger |
|||||
|
Coupling |
|
DC coupling |
|||||
|
Resistance |
|
50W |
|||||
|
Sync signal output |
|
LVTTL(3.3V) |
|||||
|
Electrical signal connector |
|
SMA |
|||||
|
Operating voltage |
|
DC 5V@200mA |
|||||
|
Communication |
|
RS232 |
|||||
|
Power supply connector |
|
2 P or 4 P aerial insertion |
|||||
|
Size |
|
70x35x13mm |
|||||
|
With pulse source |
95x70x22mm |
||||||
* For other pulse width requirements, please contact our sales staff.
Limit parameter
|
Parameter |
Symbol |
Unit |
Minimum value |
Typical value |
Maximum value |
|
|
Operating temperature |
Top |
ºC |
-10 |
|
60 |
|
|
Storage temperature |
Tst |
ºC |
-40 |
|
85 |
|
|
Humidity |
RH |
% |
5 |
|
90 |
|
|
Input optical power |
Pi |
dBm |
-5 |
7 |
10 |
|
|
External pulse and trigger input |
High level |
UH |
V |
2 |
|
2.5 |
|
Low level |
UL |
V |
0 |
|
0.6 |
|
Test curve

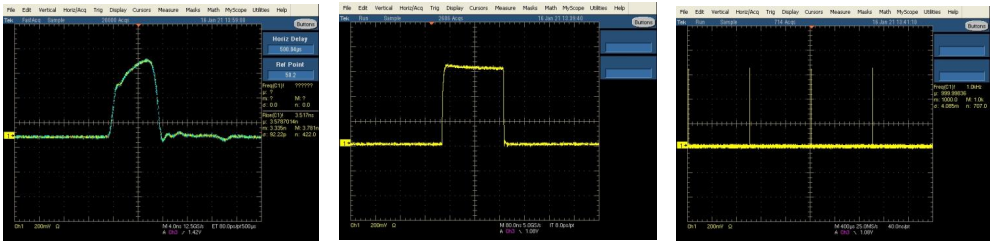

Pulse width test chart (pulse width 10 ns, 200 ns, PRF 1 KHz)
Mechanical Dimensions （in mm）

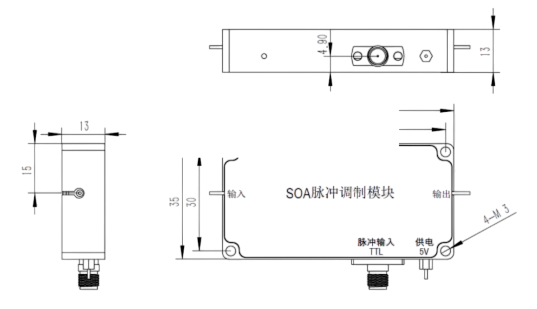

Size 1 (without pulse source)

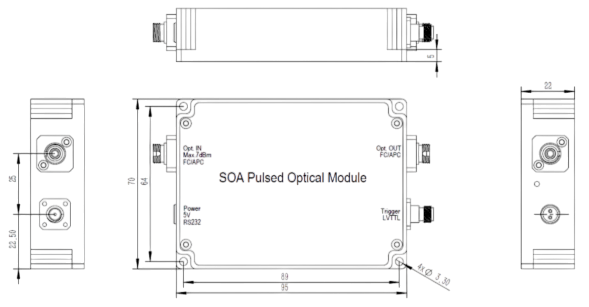

Size 2 (integrated pulse source)
Ordering Information HC-PLM-15-XX
XX = pulse source: NC-unpowered pulse source, PG-integrated pulse source
If you need more supports, Please contact us .
