Product Features
Low Insertion Loss
High Return Loss
High Extinction Ratio
High Stability & Reliability
Application
Test Instrument
Optical Fiber Sensing
Product Development
Communication System
Technical Parameters
|
Parameter |
Unit |
Value |
||||||
|
Center Wavelength |
nm |
2000 |
1550 |
1310 |
1064 |
980 |
850 |
780 |
|
Operating Wavelength Range |
nm |
±50 |
±50 |
±50 |
±30 |
±10 |
±10 |
±10 |
|
Typical Insertion Loss @ 23 ℃ |
dB |
0.8 |
0.3 |
0.3 |
0.5 |
0.6 |
0.6 |
0.6 |
|
Maximum Insertion Loss @ 23 ℃ |
dB |
1.0 |
0.5 |
0.5 |
0.7 |
0.8 |
0.8 |
0.8 |
|
Minimum Return Loss |
dB |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Typical Extinction Ratio @ 23 ° C |
dB |
22 |
30 |
30 |
30 |
30 |
28 |
28 |
|
Minimum Extinction Ratio @ 23 ℃ |
dB |
20 |
28 |
28 |
28 |
28 |
25 |
25 |
|
Input/Output Fiber Type |
/ |
SM→SM or SM→PM or PM→PM |
||||||
|
Maximum Optical Power (CW) |
mW |
300 |
||||||
|
Maximum Tensile Load |
N |
5 |
||||||
|
Operating Temperature |
℃ |
-5~+70 |
||||||
|
Storage Temperature |
℃ |
-40~+85 |
||||||
Note: With the connector is used, the processing power is only 1 W, the insertion loss is 0.3dB , the return loss is 5dB ,
and the extinction ratio is 2dB. The connector key is aligned with the slow axis.

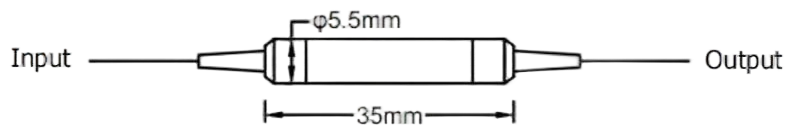

Package Dimensions （in mm）
Ordering Information HC-ILP-A-B-C-D-E-F-G-H-I-J
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
|
Wavelength |
Fiber type |
Operating Axis |
Input fiber |
Output fiber |
Package size |
Pigtail Length |
Fiber length |
Input connector |
Output Connector |
|
2000=2000nm
1550=1550nm
1310=1310nm
1064=1064nm
980=980nm
780=780nm
X = Other |
1=SM-SM
2=SM-PM
3=PM-PM
|
F=Fast Axis Blocked
N=Non-PM |
PM15=PM1500
PM98=PM980
Hi10=Hi1060
780=780-HP
PM19= PM1950
X = Other
|
PM15=PM1550
PM98=PM980
Hi10=Hi1060
780=780-HP
PM19=
PM1950
X = Other |
1=φ5.5x35mm
X = Other |
0 = 250um bare fiber
1 = 900 μm loose tube
X = Other |
08=0.8m
10=1m
X= Other |
FP=FC/UPC
FA=FC/APC
SP=SC/UPC
SA=SC/APC
00=None
X = Other |
FP=FC/UPC
FA=FC/APC
SP=SC/UPC
SA=SC/APC
00=None
X = Other |
If you need more support , Please contact us .
