Introduce

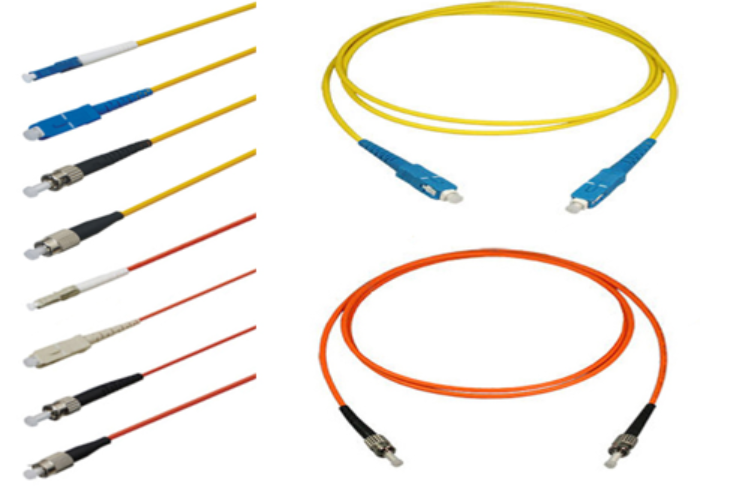

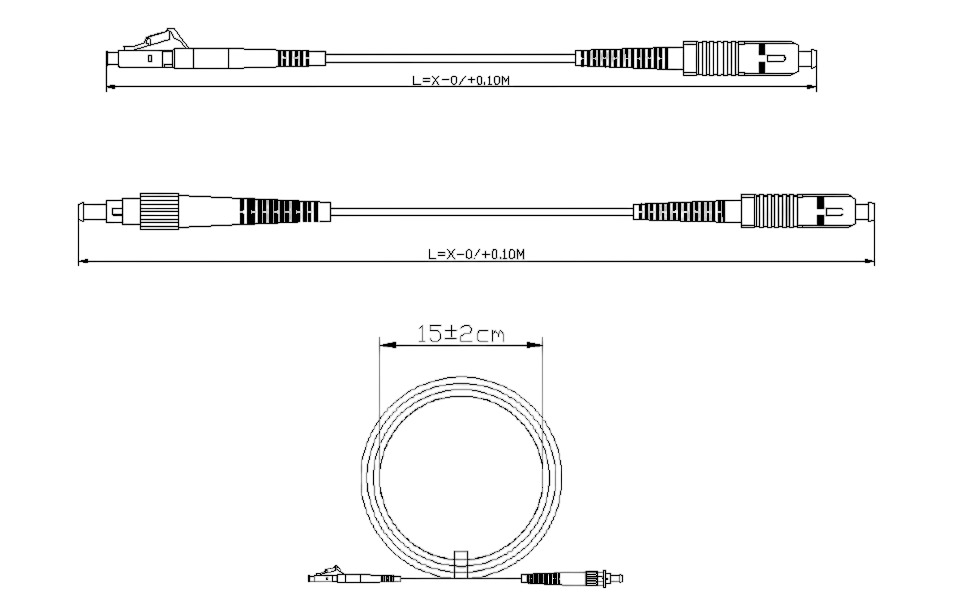

Optical fiber patchcord( fiber jumper)with ISO9001 and 14001 certification ,ROHS. sometimes called a fiber optic patch cord is a length of fiber cabling fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.The LC, a smaller form factor fiber optic connector, is most commonly used. Fiber jumpers also come in hybrid varieties with one type of connector on one end and another type of connector on the other. Jumpers are used in the same manner as patch cords, to connect end devices or network hardware to the structured cabling system.
Features
High dense spaces
Ceramic ferrules connectors
Low insertion loss,high return loss
Half the size of standard connector
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
100% Insertion,Return Loss, End face and Interference inspection
Applications
Telecommunication
CATV,FTTH,LAN
Fiber optic sensors
Optical transmission system
Test equipment
Technical parameters
|
Parameter |
FC,SC,LC |
ST,MU |
MTRJ |
|||||
|
SM |
MM |
SM |
MM |
SM |
MM |
|||
|
UPC |
APC |
UPC |
UPC |
UPC |
UPC |
UPC |
||
|
Operating Wavelength（nm） |
1310, 1550 |
850， 1300 |
1310, 1550 |
850, 1300 |
1310, 1550 |
850, 1300 |
||
|
Insertion Loss（dB） |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
|
|
Return Loss（dB） |
≥50 |
≥60 |
≥35 |
≥50 |
≥35 |
≥50 |
≥35 |
|
|
Repeatability（dB） |
≤0.1 |
|||||||
|
Interchangeability（dB） |
≤0.2 |
|||||||
|
Plug times（times） |
≥1000 |
|||||||
|
Tensil Strength（N） |
≥100 |
|||||||
|
Durability（dB） |
≤0.2 |
|||||||
|
Operating temperature（℃） |
-45~+75 |
|||||||
|
Storage temperature（℃） |
-45~+85 |
|||||||
Note：1、Specifications may change without notice.2、Above specification are for device without connector.
|
Mode number |
Single-Mode |
Multi-Mode |
|
Length |
(10.50±0.05)mm |
(10.50±0.01)mm |
|
Outer-diameter |
(2.4990±0.0005)mm |
(2.4990±0.0001)mm |
|
Inner-diameter |
(0.125+0.001/-0)mm |
(0.126-0.129)mm |
|
Concentricity |
≤1.0 |
≤4.0 |

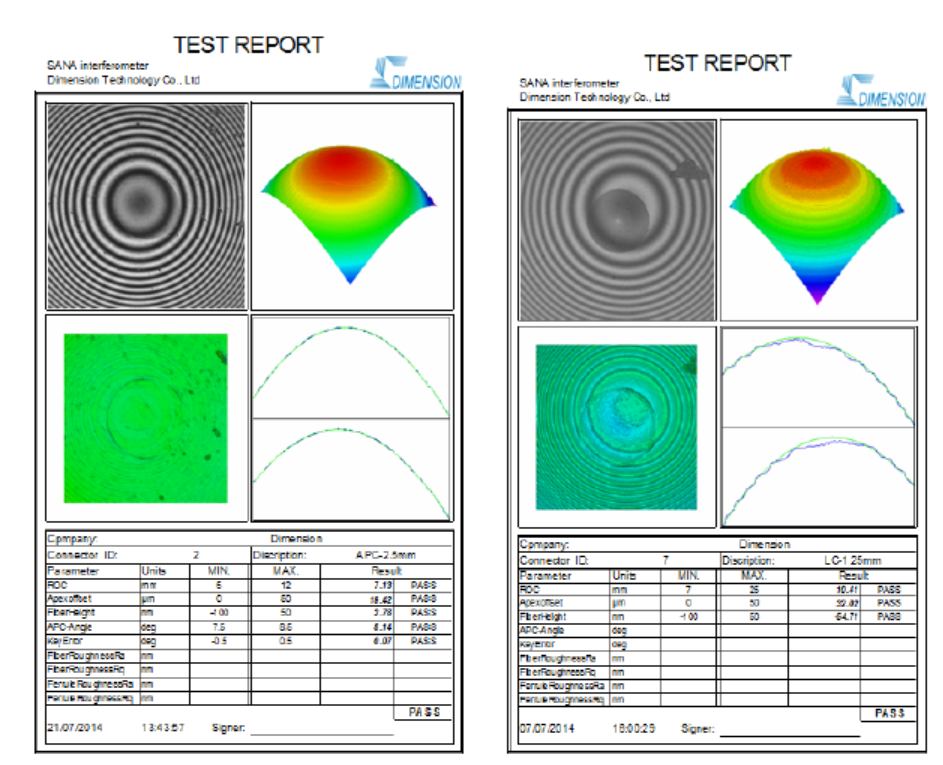

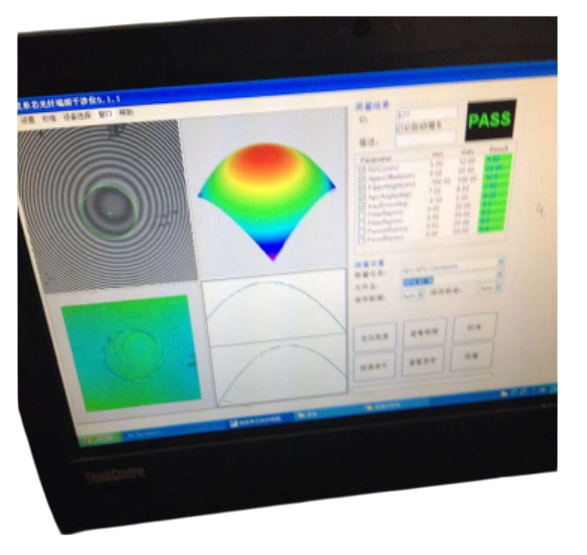

3D Interference Test
APC--Angled Physical Contact,endface is curved,with 8 degree
UPC--Ultra Physical Contact with an extended polishing for a better surface finish
Connectors&Kits(customer-desginde color for boots and dust caps)
Remark:1、Housing material—PBT,TPE,TT,Metal material2、Housing color—Blue(SM/UPC),Green(SM/APC),Beige(MM),Aqua
If you need more support , Please contact us .
