780-2050nm PM Beam Splitter/Combiner

The core function is based on the polarization state of light, either combining two orthogonally polarized beams into a single fiber or splitting one beam into two orthogonally polarized beams. It is primarily used in fields such as fiber lasers, fiber sensing, coherent communications, and life science imaging.

Specification

Resources

Product Features

Low insertion loss

High return loss

High extinction ratio

High stability & reliability

Application

Optical fiber sensing

Fiber-optic gyroscope

Fiber optic current sensor
Coherent telecommunication system

Technical Parameters

Parameter		Unit	value
Level		/	P	A	P	A	P	A	P	A
Center wavelength		nm	2050,2000,1950		1550,1480,1310		1064,1030,980		850,808,780
Operating wavelength range		nm	±40		±40		±20		±10
Typical insertion loss @ 23 ℃		dB	0.6	0.8	0.4	0.5	0.6	0.7	0.6	0.7
Maximum insertion loss @ 23 ℃		dB	1.0	1.2	0.6	0.7	0.8	0.9	0.8	0.9
Minimum Extinction Ratio @ 23 ℃		dB	20	18	22	20	22	20	22	20
Minimum directivity		dB	50
Minimum Return Loss		dB	50
Maximum optical power (CW)		mW	300
Maximum tensile load		N	5
Fiber type	Port 1 & 2		PM Panda fiber
	Port 3		SM fiber or PM Panda fiber
Operating temperature		℃	-5~+70
Storage temperature		℃	-40~+85

Note: When with the connector, the processing power is only 1 W, the insertion loss is 0.3dB , the return loss is 5dB ,

and the extinction ratio is 2 dB. The connector key is aligned with the slow axis.

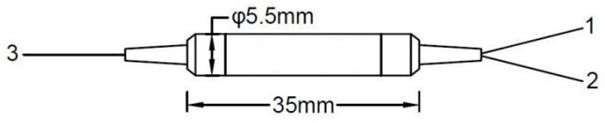

Package Dimensions in mm

Ordering information HC-PMPBS-A-B-C-D-E-F-G-H

Wavelength

Level

Port 3 to 1, 2 option

Port 3 Fiber Type

Port 1, 2 fiber type

Package size

Pigtail

Fiber length

Connector

2000=2000nm

1550=1550nm

1310=1310nm

1064=1064nm

980=980nm

780=780nm

X = Other

P=Perfect grade

A=A grade

1= SM Fiber to PM Fiber

2= PM Fiber to PM Fiber, Port 3 is slow axis 0° aligned to Port 1

3= PM Fiber to PM Fiber, Port 3 is slow axis 45° aligned to Port 1

PM15=PM1550

PM98=PM980

Hi10=Hi1060

SMF28=SMF28E

780=780-HP

X = Other

PM15=PM1550

PM13=PM1310

PM98=PM980

PM78=PM780-HP

X = Other

1 =φ5.5x35mm

X = Other

0=bare fiber

1=900 μm

loose tube

08=0.8m

10=1m

X = Other

FP=FC/UPC

FA=FC/APC

SP=SC/UPC

SA=SC/APC

00 = None

X = Other

If you need more support , please contact us .
