Product features
Low insertion loss
High return loss
High reliability
High stability
Application
Fiber laser
Optical fiber sensing
Coherence detection
Product development
Optical fiber instrument
Technical parameters
1064-2050 nm Polarization-Maintaining Faraday Rotator
|
Parameter |
Unit |
value |
||
|
Center wavelength |
nm |
2050, 2000,1950 |
1550,1480,1310 |
1064 |
|
Operating wavelength width |
nm |
±15 |
±20 |
±5 |
|
Maximum insertion loss |
dB |
1.3 |
0.5 |
1.6 |
|
Minimum Extinction Ratio @ 23 ℃ |
dB |
18 |
20 |
20 |
|
CWL Faraday rotation angle |
deg |
45 |
||
|
CWL Maximum rotation angle tolerance at 23 ° C |
deg |
±2 |
||
|
Maximum polarization mode dispersion |
ps |
0.05 |
||
|
Maximum tolerable power |
mW |
300 |
||
|
Maximum tensile load |
N |
5 |
||
|
Align the axes |
|
Two-axis operation |
||
|
Fiber type |
|
PM Panda Fiber |
||
|
Operating temperature |
℃ |
-5~+70 |
||
|
Storage temperature |
℃ |
-40~+85 |
||
Note: When the connector is used, the processing power is only 1 W, the insertion loss is 0.3dB higher, the return loss is 5dB lower, and the extinction ratio is 2D B. The connector key is aligned with the slow axis.
Technical parameters
780-1080 nm high power Faraday rotator (TGG type, power 20 W)
980-1080nm high power Faraday rotator (TGG type, power 50 W/100 W)
|
Parameter |
Unit |
Value (TGG type, power 20 W) |
Value (TGG type, power 50W/100 W) |
|
Center wavelength |
nm |
1064, 1030,980, 850,808,780 |
1064,1030, 980 |
|
Operating wavelength width |
nm |
±5 |
±5 |
|
Maximum insertion loss |
dB |
1.0 |
1.0 |
|
Faraday rotation angle of CWL |
deg |
45 |
45 |
|
CWL Maximum rotation angle tolerance at 23 ° C |
deg |
±2 |
±2 |
|
Minimum Extinction Ratio @ 23 ° C (Polarization Maintaining Fiber Type) |
dB |
20 |
20 |
|
Maximum polarization dependent loss @ 23 ° C (single mode fiber type) |
dB |
0.15 |
0.15 |
|
Maximum polarization mode dispersion |
ps |
0.05 |
0.05 |
|
Maximum tolerable power |
W |
0.5,1,5, 10,20 or Specified |
50, 100 or Specified |
|
Maximum pulse peak power |
kW |
10 or Specified |
10 or Specified |
|
Package size |
mm |
64x28x26 |
82x38x35 |
|
Maximum tensile load |
N |
5 |
5 |
|
Align the axes |
|
Two-axis operation |
Two-axis operation |
|
Operating temperature |
℃ |
-5~+70 |
-5~+70 |
|
Storage temperature |
℃ |
-40~+85 |
-40~+85 |
Note: With connector, the processing power is only 1 W, the insertion loss is 0.3dB , the return loss is 5dB ,
and the extinction ratio is 2D B. The connector key is aligned with the slow axis.

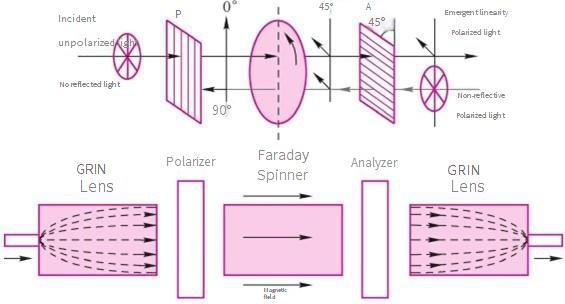

Light path diagram
