Product Features
High Stability
High Reliability
High Return Loss
Low Insertion Loss
Application Scope
Fiber Laser
Optical Fiber Sensing
Coherence Detection
Product Development
Fiber Optical Instrument
Technical Specifications
780-2050nm Polarization-Maintaining Mirror
|
Parameters |
Unit |
Value |
||
|
Center Wavelength |
nm |
2050, 2000,1950 |
1550,1480,1310 |
1064,980,850,780 |
|
Operating Wavelength Range |
nm |
±15 |
±15 |
±5 |
|
Maximum Insertion Loss |
dB |
0.9 |
0.5 |
0.7 |
|
Minimum Extinction Ratio at 23 ℃ |
dB |
18 |
20 |
20 |
|
Maximum Polarization Mode Dispersion |
ps |
0.05 |
||
|
Maximum Withstand Power |
mW |
300 |
||
|
Maximum Tensile Load |
N |
5 |
||
|
Fiber Type |
|
PM Panda Fiber |
||
|
Operating Temperature |
℃ |
-5~+70 |
||
|
Storage Temperature |
℃ |
-40~+85 |
||
|
Package Dimensions |
mm |
φ5.5x35mm |
||
Note:
When connectors are used, the power handling is only 1W, insertion loss increases by 0.3dB, return loss decreases by 5dB, and extinction ratio decreases by 2dB. The connector key is aligned with the Slow Axis.
Technical Specifications
1064-2050nm Polarization-Maintaining Faraday Mirror
780-1080nm High Power Faraday Rotator Mirror (TGG Type, 20W Power Handling
|
Parameters |
Unit |
Value( Polarization-Maintaining Faraday Mirror ） |
Value（High Power Mirror 20W） |
||
|
Center Wavelength |
nm |
2050, 2000,1950 |
1550,1480,1310 |
1064 |
1064,1030,980,850,808,780 |
|
Operating Wavelength Range |
nm |
±15 |
±15 |
±5 |
±5 |
|
Maximum Insertion Loss |
dB |
0.9 |
0.6 |
3.0 |
1.0 |
|
Minimum Extinction Ratio at 23 ℃ |
dB |
18 |
20 |
20 |
20 |
|
Max.PDL at RT(Single-Mode Fiber Type) |
dB |
--- |
--- |
--- |
0.15 |
|
Faraday Rotation Angle at CWL |
deg |
45 |
45 |
||
|
Maximum Rotation Angle at CWL |
deg |
±3 |
±3 |
||
|
Maximum Polarization Mode Dispersion |
ps |
0 05 |
0 05 |
||
|
Maximum Power |
mW |
300 |
0.5, 1,5, 10,20 or Specified |
||
|
Maximum Peak Pulse Power |
kW |
--- |
10 or Specified |
||
|
Maximum Tensile Load |
N |
5 |
5 |
||
|
Axis Alignment |
|
Biaxial Operation |
Biaxial Operation |
||
|
Fiber Type |
|
PM Panda Fiber |
--- |
||
|
Operating Temperature |
℃ |
-5~+70 |
-5~+70 |
||
|
Storage Temperature |
℃ |
-40~+85 |
-40~+85 |
||
|
Package Dimensions |
mm |
φ5.5x35mm |
64x28x26mm |
||
Note:
When connectors are used, the power handling is only 1W, insertion loss increases by 0.3dB, return loss decreases by 5dB, and extinction ratio decreases by 2dB. The connector key is aligned with the slow axis.
Package Dimensions(Unit：mm)
Dimension 1：φ5.5x35mm
Applicable to：780-2050nm Polarization-Maintaining Mirror

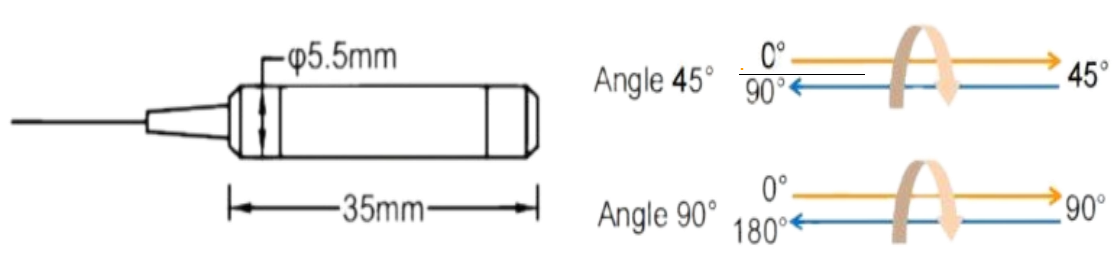

Dimension 2：φ5.5x35mm
Applicable to：1064-2050nm Polarization-Maintaining Faraday Mirror
Dimension 3：64x28x26mm
Applicable to：780-1080nm High Power Faraday Rotator Mirror (20W)
Ordering Information：HC-FRM-A-B-C-D-E-F-G-H-J
|
A |
B |
C |
D |
E |
|
Wavelength |
Average Power |
Peak Power |
Rotation Angle |
Package Dimensions |
|
780=780nm 980=980nm 1030=1030nm 1064=1064nm 1310=1310nm 1550=1550nm 2000=2000nm X=Others |
500=500mW 01=1W 05=5W 10=10W 20=20W X=others |
00=Continuous Wave 01=1kW 02=2kW 10=10kW X=Others |
1=45° 2=90° |
1= φ5.5x35mm 2=64x28x26mm X=Others |
|
F |
G |
H |
J |
|
Fiber Type |
Pigtail Type |
Fiber Length |
Connector |
|
PM15=PM1550 PM13=PM1310 PM98=PM980 Hi10=HI1060 PM19=PM1950 PLMA10=PLMA-GDF-10/125-M PLMA20=PLMA-GDF-20/130-M PLMA25=PLMA-GDF-25/250-M X=Others |
0=250umbare fiber 1=900um loose tube X=Others |
05=0.5m 08=0.8m 10=1.0m 15=1.5m X=Others |
FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC 00=None X=Others |
