Features
High Isolation
High Return Loss
Low Insertion Loss
High Stability&Reliability
Applications
Testing Instrument
Medical Equipment
Optical Fiber Sensing
Optical Fiber Amplifier
Specifications
780-1080nm High Power Circulator (TGG Type，Power 20W)、980-1080nm High Power Circulator(TGG Type,Power 100W)
|
Parameters |
Unit |
Value（Power 20W） |
Value(Power 100W) |
|
Operating Wavelength Range |
nm |
±5 |
±5 |
|
Typical Peak Isolation |
dB |
25 |
25 |
|
Minimum Isolation@23℃ |
dB |
22 |
22 |
|
Typical Insertion Loss@23℃ |
dB |
1.3 |
1.3 |
|
Maximum Insertion Loss@ 23℃ |
dB |
1.5 |
1.5 |
|
Minimum Extinction Ratio@23℃(Polarization-Maintaining Fiber Type) |
dB |
20 |
20 |
|
Maximum Polarization Dependent Loss@23℃ (Single-Mode Fiber Type) |
dB |
0.15 |
0.15 |
|
Minimum Return Loss (Input / Output) |
dB |
45 |
45 |
|
Minimum Crosstalk |
dB |
45 |
45 |
|
Maximum Average Power(including Port 1 and Port 2) |
W |
1, 2, 5, 10, 20 or Specified |
50, 100 or Specified |
|
Maximum Peak Power for ns Pulse |
kW |
10 or Specified |
10 or Specified |
|
Maximum Tensile Load |
N |
5 |
5 |
|
Package Dimensions |
mm |
70 x28 x26 |
89 x37.5 x40 |
|
Operating Temperature |
℃ |
+10~+50 |
+10~+50 |
|
Storage Temperature |
℃ |
0~+60 |
0~+ |
Notes:
When connectors are used, the handling power is only 1W, insertion loss increases by 0.3dB, return loss decreases by 5dB, extinction ratio decreases by 2dB, and connectors are aligned with the slow axis.
1310-1550nm High Power Circulator (20W)
|
Parameters |
Unit |
Value |
||||
|
Type |
|
Type A |
Type P |
|||
|
Port Type |
|
3 Port |
||||
|
Center Wavelength |
nm |
1550,1480,1310 |
||||
|
Operating Wavelength Range |
nm |
±20 |
||||
|
Typical Insertion Loss@23 ℃ |
dB |
0.7 |
1.1 |
0.6 |
1.0 |
|
|
Maximum Insertion Loss@23 ℃ |
dB |
0.9 |
1.3 |
0.8 |
1.2 |
|
|
Typical Peak Isolation@23 ℃ |
dB |
46 |
30 |
|||
|
Minimum Isolation@@23 ℃ |
dB |
40 |
20 |
|||
|
Minimum Extinction Ratio@23 ℃ |
dB |
20 |
||||
|
Minimum Crosstalk |
dB |
50 |
||||
|
Minimum Return Loss |
dB |
50 |
||||
|
Package Dimensions |
Input Power ≤5W |
mm |
5.5x35 |
|||
|
Input Power ≤10W |
mm |
70x12x8 |
||||
|
Input Power ≤20W |
mm |
38x18.5x11.5 |
||||
|
Maximum Tensile Load |
N |
5 |
||||
|
Operating Axis |
|
Slow Axis Operation, Fast Axis Blocked |
||||
|
Operating Temperature |
℃ |
-5~+70 |
||||
|
Storage Temperature |
℃ |
-40~+85 |
||||
Notes:
When connectors are used, the handling power is only 1W, insertion loss increases by 0.3dB, return loss decreases by 5dB, extinction ratio decreases by 2dB, and connectors are aligned with the slow axis.
Package Dimensions(Unit：mm)

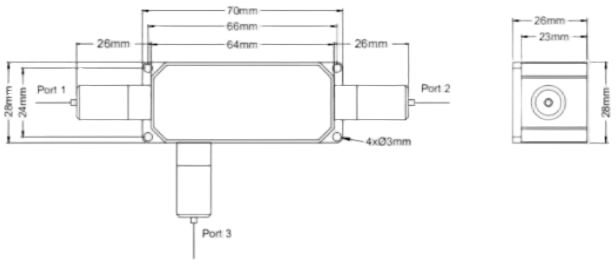

Dimension 1：70 x28 x26mm
Applicable to：780-1080nm High Power Circulator (TGG Type，Power 20W)
Dimension 2：82 x28 x26mm
Applicable to：980-1080nm High Power Circulator (TGG Type,Power 100W)

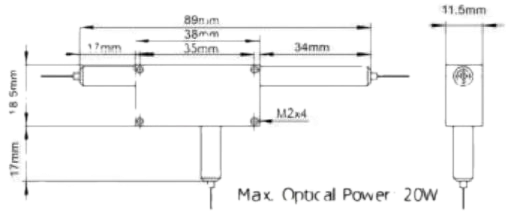

Dimension 3：5.5x35mm、70x12x8mm、38x18.5x11.5mm
Applicable to：1310-1550nm High Power Circulator (20W)
Max. Optical Power: 5W
Ordering Information：HC-HCIR-A-B-C-D-E-F-G-H-I-J-K
|
A |
B |
C |
D |
E |
F |
G |
|
Wavelength |
Port Type |
Average Power |
Peak Power |
Operating Axis |
Grade |
Package Dimension |
|
780=780nm 980=980nm 1030=1030nm 1064=1064nm 1310=1310nm 1480=1480nm 1550=1550nm
X=Others |
3=3-Port
|
01=1W 02=2W 05=5W 10=10W 20=20W 50=50W 100=100 W
X=Others |
00=Conti-nuous Wave 01=1 kW 02=2 kW 10=10 kW 20=20kW
X=Others |
B=Biaxial Operation
F=Fast Axis Blocked
N=Non- PM
|
A= Type A
P=Type P |
0= φ5 5x35mm 1=70x28x26mm 2=82x38x35mm 3=70x12x8mm 4=38x18.5x11.5mm
X=Others |
|
H |
I |
J |
K |
|
Fiber Type |
Pigtail Type |
Fiber Length |
Connector Type |
|
PM15=PM1550 PM13=PM1310 PM98=PM980 Hi10=Hi1060 780=780-HP PM78=PM780-HP PLMA10=PLMA-GDF-10/125-M PLMA20=PLMA-GDF-20/130
X=Others |
0=250um bare fiber
1=900um loose tube
|
08=0.8m
10=1.0m
X=Others |
FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC 00=None
X=Others |
