25Gb/s SFP28 ZR 80km Transceiver

contact us:lina@glhcoptical.com

Product Description

The laser based 25Gigabit SFP28 ZR Transceiver is designed to transmit and receive serial optical data over single mode optical fiber with 80km.

They are compliant with SFF-8431&SFF-8432. The transmitter converts serial CML electrical data into serial

optical data. The receiver converts serial optical data into serial CML electrical data. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.





Features

1310nm EML Laser

Single 3.3V Power supply

Power Dissipation < 2.5W

Duplex LC Connector Interface

Hot Pluggable SFP28 form factor

Integrated SOA & PIN-TIA ROSA

Operating data rate up to 25.78Gbps

Maximum link length of 80km on 9/125 SMF

Operating Temperature:Standard: 0℃ ~ 70℃,Industrial: -40℃ ~ +85℃





Applications

25GBASE-ZR

CPRI Option 10





Standard

SFP28 mechanical specification compliant with SFF-8431

Compliant with IEEE 802.3cc





Optical and Electrical Characteristics



Parameter

Symbol

Min.

Typical

Max.

Unit

Transmitter

Center Wavelength

λC

1295



1310

nm

Average Output Power

Pout

2



7

dBm

Optical Modulation Amplitude

POMA

2



8

dBm

Average Power of OFF Transmitter

POFF

-30



-30

dBm

Side Mode Suppression Ratio

SMSR

30





dB

Spectral Width (-20dB)

∆λ

1



1

nm

Extinction Ratio

ER

8.0

dB

Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3}*(Note1)



{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}



Transmitter Dispersion Penalty

TDP

2



2.7

dB

Input Differential Impedance

zin

90

100

110

Differential input voltage

vppin

200



900

mv

Receiver

Center Wavelength

λC

1295



1310

nm

Average Receiver Sensitivity*(Note2)

RSEN





-28

dBm

Receiver Overload

Pmax

-3.5





dBm

LOS De-Assert

LOSD





-29

dBm

LOS Assert

LOSA

-40





dBm

LOS Hysteresis



0.5





dB

Output Differential Impedance

Zout

90

100

110

Differential output voltage

Vppout

200



900

mV

Note:

1)  Measured with a PRBS 2^31-1 test pattern @25.78125Gb/s, Hit ratio≤5E-5.

2)  Average Receiver Sensitivity (max), measured with a PRBS 2^31-1 test pattern @25.78125Gb/s, ER=8.0dB, BER≤5E-5.





Absolute Maximum Ratings



Parameter

Symbol

Min.

Max.

Unit

Storage Temperature

Ts

-40

+85

°C

Maximum Supply Voltage

VCC

-0.5

4.0

V

Operating Relative Humidity (non-condensation)

RH



-

85

%

Note:

Exceeding any one of these values may destroy the device permanently.





Recommended Operating Conditions



Parameter

Symbol

Min.

Typ.

Max.

Unit

Operating Case Temperature

TC

0



70

°C

Operating Case Temperature

TC

-40



+85

°C

Power Supply Voltage

VCC

3.15

3.3

3.45

V

Power Supply Current

ICC





750

mA

Maximum Power Dissipation

PD





2.5

W

Bit Rate

BR



25.78



Gb/s

Transmission Distance over SMF

TD





80

km







Digital Diagnostic Functions

25G SFP28 transceivers provide an enhanced digital diagnostic.

Parameter

Range

Unit

Accuracy

Calibration

Temperature

0 to 70/

-40 to +85

°C

±3°C

Internal / External

Voltage

3.1 to 3.5

V

±3%

Internal / External

Bias Current

30 to 130

mA

±10%

Internal / External

TX Power

2 to 7

dBm

±3dB

Internal / External

RX Power

-28 to -3.5

dBm

±3dB

Internal / External

Note:

The transceivers provide serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire serial interface (SCL, SDA). The diagnostic information with internal calibration or external calibration all are implemented, including received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring.

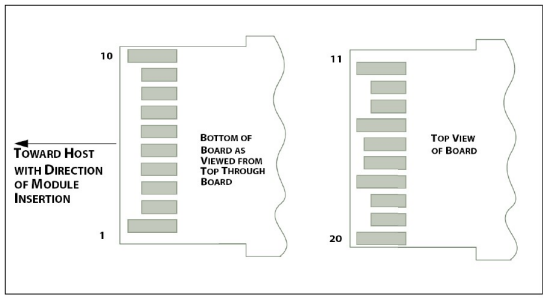

Electrical Pin-out Details





Pin Function Definitions



Pin

Name

Description

Note

1

VeeT

Transmitter Ground

1

2

TX Fault

Transmitter Fault Indication

2

3

TX Disable

Transmitter Disable



4

SDA

Module Definition 2

3

5

SCL

Module Definition 1

3

6

MOD-ABS

Module Definition 0



7

RS0

RX Rate Select (LVTTL).

5

8

LOS

Loss of Signal

4

9

RS1

TX Rate Select (LVTTL).

5

10

VeeR

Receiver Ground

1

11

VeeR

Receiver Ground

1

12

RD-

Inv. Received Data Out



13

RD+

Received Data Out



14

VeeR

Receiver Ground

1

15

VccR

Receiver Power



16

VccT

Transmitter Power



17

VeeT

Transmitter Ground

1

18

TD+

Transmit Data In



19

TD-

Inv. Transmit Data In



20

VeeT

Transmitter Ground

1

Note:

1)  Module ground pins GND are isolated from the module case.

2)  Tx_Fault is an open collector/drain output, which should be pulled up with a 4.7k – 10k Ohms resistor on Host board.

3)  Should be pulled up with 4.7k–10kohms on host board to a voltage between 2.0V and 3.6V.

4)  LOS is open collector output. Should be pulled up with 4.7k–10kohms on host board to a voltage between

2.0V and 3.6V.

5)  CDR control(Volatile parameter. Reset to default value on boot)





Hard PIN7

Soft RS0 BitA2H Byte 110d

bit3

Mode of Operation

RS0

0

0

Rx:9.8304Gb/s,10. 1376Gb/s or

10.3125Gb/s



0

1(default)

Rx:24.33024Gb/s or 25.78125Gb/s.

Module auto detect data rate and CDR

lock accordingly.



1

0





1

1(default)





Hard PIN9

Soft RS1 Bit,A2H Byte 118d

bit3

Mode of Operation

RS1

0

0

Tx:9.8304Gb/s,10. 1376Gb/s or

10.3125Gb/s



0

1(default)

Tx:24.33024Gb/s or 25.78125Gb/s.

Module auto detect data rate and

CDR lock accordingly.





Mechanical Specifications





Order Information

Part No.

Package

Data Rate

Fiber

Distance

Conn.

Temp.

DDMI

HC-M25S-55-13-C

SFP28

Up to

25.78Gbps

SMF

80km

LC

0~70℃

YES

HC-M25S-55-13-I

SFP28

Up to

25.78Gbps

SMF

80km

LC

-40~85℃

YES









If you need more support , Please contact us .
