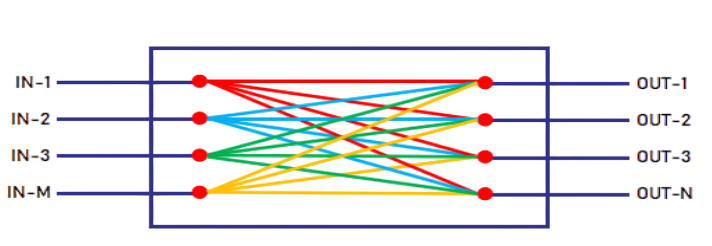

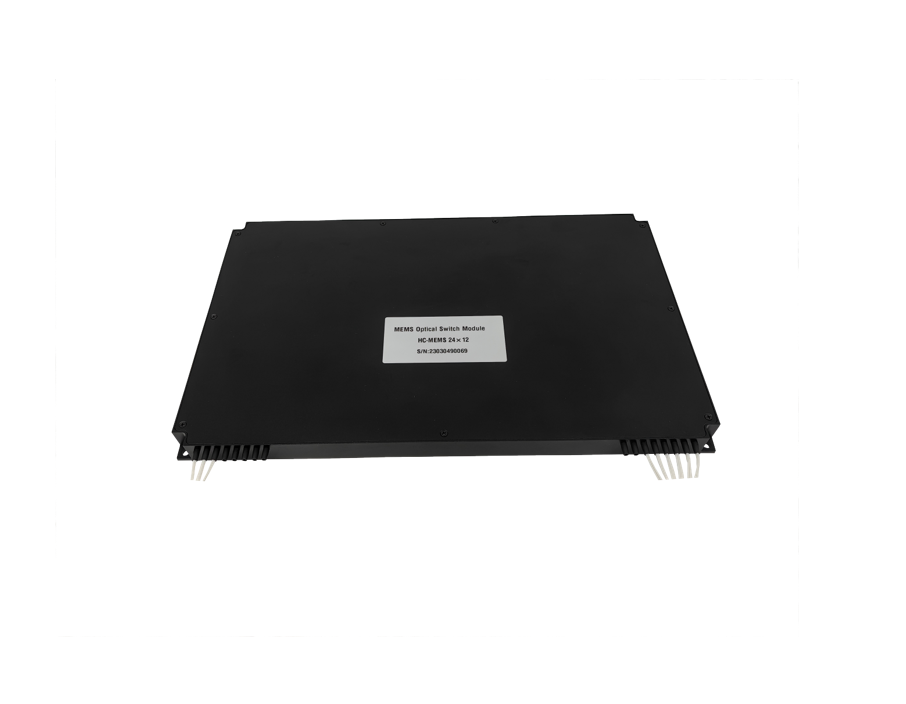

Parameters

Unit

MEMS M×N.SM

Working Wavelength

nm

1260-1650 or 780 or 980 or 1064

Testing Wavelength

nm

1310/1550/1625/1650

Insertion Loss

dB

@CWL Single-band

≤1.6 (M≤8, N≤8)

≤2.0 (M≤16, N≤16)

≤2.6 (M≤32, N≤32)

≤3.0 (M≤64, N≤64)

@CWL Dual-band

≤2.0 (M≤8, N≤8)

≤2.4 (M≤16, N≤16)

≤3.0 (M≤32, N≤32)

≤3.4 (M≤64, N≤64)

WDL

dB

≤0.6

PDL

dB

≤0.3

Return Loss

dB

≥45

Crosstalk

dB

≥50

Repeatability

dB

≤±0.1

Switching Time

ms

≤15 (M≤16, N≤16)

≤50(M≤64, N≤64)

Durability

times

≥109

Input Optical Power

mW

≤500

Operating Voltage

V

DC 5V±10%

Operating Current

A

≤0.8 (M+N≤16)

≤1.0 (M+N≤32)

≤2.0 (M+N≤64)

≤4.0 (M+N≤128)

Operating Temp.

°C

-5 ~ +75

Storage Temp.

°C

-40 ~ +85

Dimension

mm

M5: 110× 141× 12 (M+N≤16)

M6: 200× 180× 18(M+N≤32)

M7: 280×240×32 (M+N≤64)

M8:300X400X60(64

1.Within operating temperature and all SOP.

2.Excluding connector.

3.WDL is measured in a ±20nm range at 23°C.

Parameters

Unit

MEMS M×N-MM

Working Wavelength

nm

850±30, 1310±30

Testing Wavelength

nm

850/1310

Insertion Loss

dB

@CWL Single band

≤1.6 (M≤12, N≤12)

≤2.0 (M≤16, N≤16)

@CWL Dual-band

≤2.0 (M≤12, N≤12)

≤2.4 (M≤16, N≤16)

WDL

dB

≤0.6

PDL

dB

≤0.4

Return Loss

dB

≥30

Crosstalk

dB

≥30

Repeatability

dB

≤±0.1

Switching Time

ms

≤15 (M≤8, N≤8)

≤30(M≤16, N≤16)

Durability

times

≥109

Input Optical Power

mW

≤500

Operating Voltage

V

DC 5V±10%

Operating Current

A

≤0.8 (M+N≤16)

≤1.5 (M+N≤32)

Operating Temp.

°C

-5 ~ +70

Storage Temp.

°C

-40 ~ +85

Dimension

mm

M5: 110× 141× 12mm (M+N≤16)

M6: 200× 180× 18mm (M+N≤24)

M7: 280×240×32mm (M+N≤32)

customization：32

1.Within operating temperature and all SOP.

2.Excluding connector.

3.WDL is measured in a ±20nm range at 23°C.
