Features
Optical isolation function:
Allows one-way transmission of optical signals, prevents reflected light from returning to the light source, and protects the laser from interference by reflected light.
Wavelength Division Multiplexing Function:
Combines optical signals of multiple wavelengths into a single fibre for transmission (multiplexing).
Separates multiple wavelength signals in a single fibre into separate channels (demultiplexing).
Signal protection and optimisation:
Improves system stability and reduces noise and signal distortion caused by reflected light.
Highly Integrated:
Simplifies optical path design by integrating isolator and WDM functions in a compact device.
Applications
Optical communication systems:
Fibre optic networks: for long-haul transmission and metropolitan area networks (MANs) to improve signal quality and system reliability.
Data Centre Interconnect: for multi-wavelength transmission and reflected light isolation in high-speed optical modules.
Fibre Lasers:
Laser Protection: Prevents reflected light from damaging lasers and improves laser life and stability.
Multi-wavelength laser system: Supports multi-wavelength laser generation and transmission.
Optical Sensing Systems:
Distributed Fibre Optic Sensing: for multi-wavelength sensing signal transmission and reflected light isolation.
Environmental monitoring: for high stability optical signal transmission in complex environments.
Test & Measurement:
Optical test equipment: for signal isolation and multiplexing in multi-wavelength test systems.
Medical Devices:
Laser medical equipment: protection of laser sources and optimisation of signal transmission in laser therapy and diagnostic equipment.
Technical Specification
|
Parameter
|
Single Stage
|
Dual Stage
|
|
Operating Wavelength Range（nm）
|
Signal Channel
|
C band:1528~1564 or
L band:1570~1605
|
|
Pump Channel
|
965~995
|
|
Insertion Loss（dB）
|
Signal Port
|
<1.2
|
<1.3
|
|
Pump Port
|
<0.6
|
|
Wavelength Dependent Loss（dB）
|
Signal to Common
|
<0.5
|
|
Wavelength Isolation（dB）
|
Signal to Common@Pump Wavelength Range
|
>30
|
|
Pump to Common@Signal Wavelength Range
|
>12
|
|
Reverse Direction Isolation
(over signal wavelength range,0~70℃,all sop)
|
Common to Signal
|
>21
|
>36
|
|
Polarization Dependent Loss（dB）
|
<0.1
|
<0.2
|
|
Polarization Mode Dispersion(standard)（ps）
|
<0.25
|
<0.05
|
|
Directivity（dB）
|
≥50
|
|
Return Loss（dB）
|
≥45
|
|
Optical Power（mW）
|
≤500
|
|
Operating Temperature(℃)
|
-0~+70
|
|
Storage Temperature(℃)
|
-40~+85
|
|
Fiber Type
|
Signal & Tap Ports
|
Corning SMF-28
|
| |
Common &Pump Ports
|
Corning HI1060
|
|
Package size（mm）
|
Φ5.5x40
|
* 900um loose tube fiber available and connectorized process available

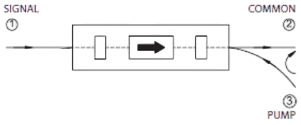

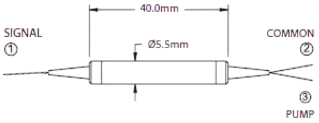

Dimension (Unit:mm)
If you need support , Please contact us .
