Fiber Optical Amplifier EDFA
Product features
1. Working wave: C bank Single wave / multi-wave ooptional
2. Working mode: ACC/APC/AGC Optional
3. Communication mode: RS232/ RS422/ TTL optional
Product Application
Our modular optical fiber amplifier products are mainly characterized by low cost and low power consumption. Using the device and the bend radius of the fiber, the EDFA ruler From MSA standard, it is reduced to 50 * 50 * 10, even 50 * 30 * 8mm, which can meet different requirements such as single-wave amplification, multi-wave flat amplification, etc.
In metro, Lidar, phase detection systems, radar systems.

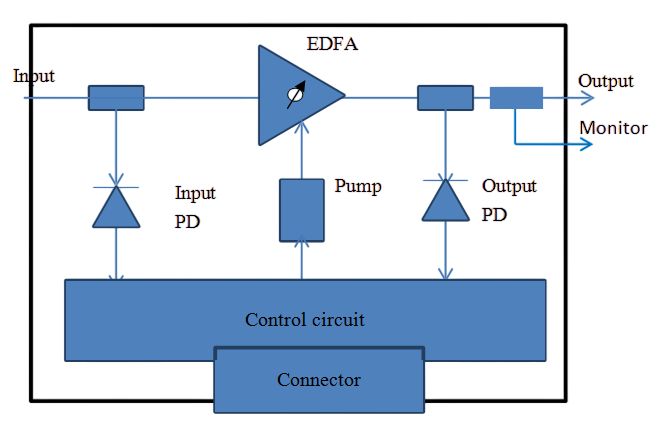

1.The power amplificationof the optical signal in the transmissionbroadban is realized,and the in band output power consistency is ensured；
2. Realizes the closed-loop control of the output optical power to achieve the stable output of the power in the whole environment;
3. The optical pow of that internal output of the module is monitored and report;
4 When the output power is lower than the threshold value, the module is in active standby, and after the light is recovered, the module is in active recovery output.
Shell material
|
Project |
Request |
Remark |
|
Material |
Aluminum Alloy |
|
|
Surface treatment |
Black anodizing |
Definition of electrical connection
|
Parameter |
Unit |
Indicators |
Remark |
||
|
Minimal |
Typical |
Max |
|||
|
Supply voltage |
V |
4.75 |
5 |
5.25 |
Default 5V, support customization |
|
Data and control |
RS232 |
Default RS232, support customization | |||
Definition of optical connection
|
Signal definition |
Connector model |
Connector type |
Length |
Remark |
|
Optical signal input |
Pigtail |
FC/APC |
1.0±0.1m |
Connector and length support
customization |
| Optical signal output |
Pigtail |
FC/APC |
1.0±0.1m |
Connector and length support
customization |
Ordering Information HC-EDFA-0-2-22-5-4-S-UGF
|
Product type |
Input power |
Output Power |
Size |
Interface type |
Polarization type |
Flat type |
|
A |
B |
C |
D |
E |
F |
G |
|
1: Modular 2: Rack Mount Fiber Amplifier |
1：-5～5dBm
2：-15～-5dBm
3：-40~ -5dBm
0: Custom |
XX：XX dBm It represents the actual output power value of the single channel of the order products(should not be greater than 25) XXN:-XXdBm N means that the output power is negative. |

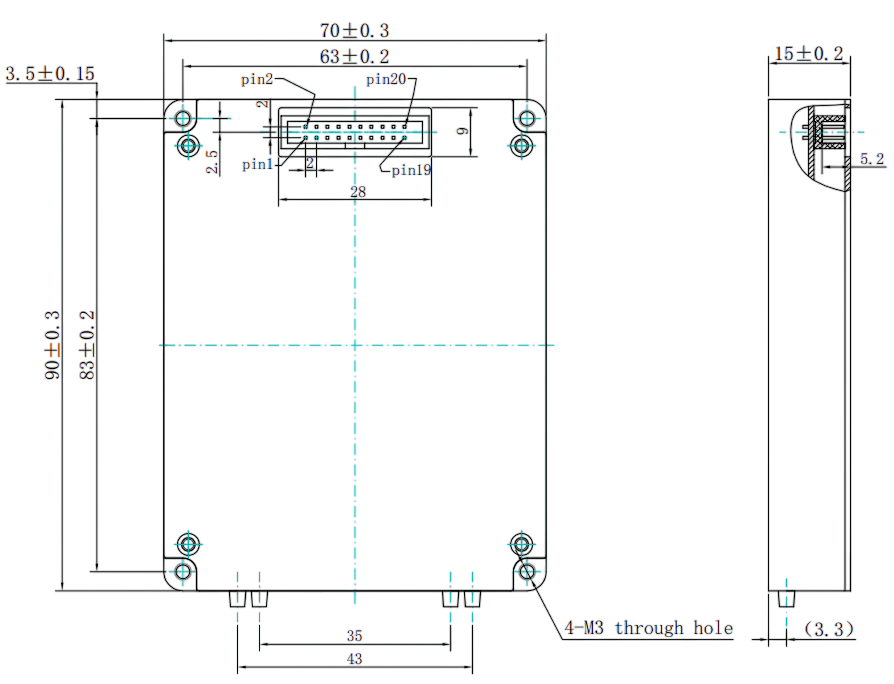

1: 1U chassis
2：40*70*19
3：50*50*10
4：50*30*8
5：80*60*15
0: Custom |
1：SC/PC
2：SC/APC
3：FC/PC
4：FC/APC
0: Custom |
S: SM (single mode)
P: PM (Polarization Maintaining) |
GF: Gain Flat UG F:No Gain Flat |
Example: HC-EDFA-0-2-22-5-4-S-UGF
Module optical fiber amplifier, customized transmission power range, output power of + 22dBm, optical connection of FC/APC, the module is a single-mode gain-flattened optical fiber amplifier.
If you need more support , Please contact us.
