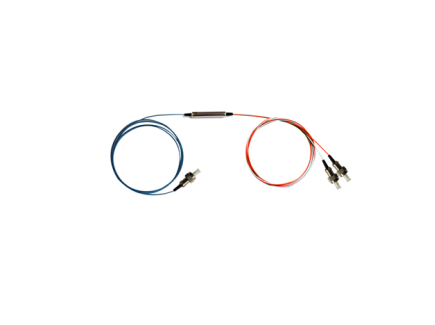

PM CWDM

PM CWDM (Polarisation-Maintaining Coarse Wavelength Division Multiplexing) is an optical communication solution that combines Polarisation-Maintaining (PM) fibre technology with Coarse Wavelength Division Multiplexing (CWDM) and is mainly used for high-precision optical systems that are sensitive to polarisation.

Specification

Resources

Feature

Low PDL

Reliability

High isolation

Low insertion loss

Application

MAN

CATV System

WDM System

Technical Specification

Parameter		Specification
Channel Wavelength(nm)		1270-1610
Channel Spacing(nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		>13
Pass Channel Insertion Loss (dB)		≤0.8
Reflection Channel Insertion Loss/ (dB)		≤0.5
Isolation(dB)	Adjacent	>30
	Non-adjacent	>40
	Reflection	>12
Extinction Ratio（@23℃）(dB)		≥18
Directivity(dB)		>45
Return Loss (dB）		>45
Maximum Power Handling (mW)		300
Opterating Temperature (℃)		-5~+70
Storage Temperature (℃)		-40~85
Package dimension (mm)		5.5×L38 for 900um loose tube

1.Above specification are for device without connector.

2.For devices with connectors,insertion loss will be 0.3dB higher,RL will be 5dB lower,and ER will be 2dB lower.

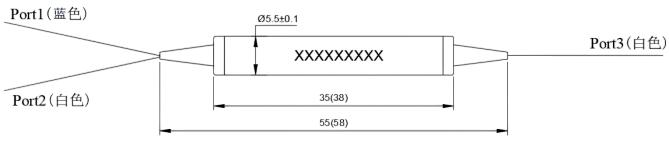

Dimension (mm)

Ordering information HC-PM-CWDM-A-B-C-D-E

CWDM

Channel Spacing

Pass Channels

Axis Alignment

Fiber Type

Fiber Length

Connector

C=CWDM

01=1270

02=1290

…….

18=1610

1=Fast Axis Blocked

2=Both Axis Working

S=Specify

1=Bare fiber

2=900um loose tube

1=1m

2=2m

S= Specify

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

S=Specify

If you need more support , Please contact us .
