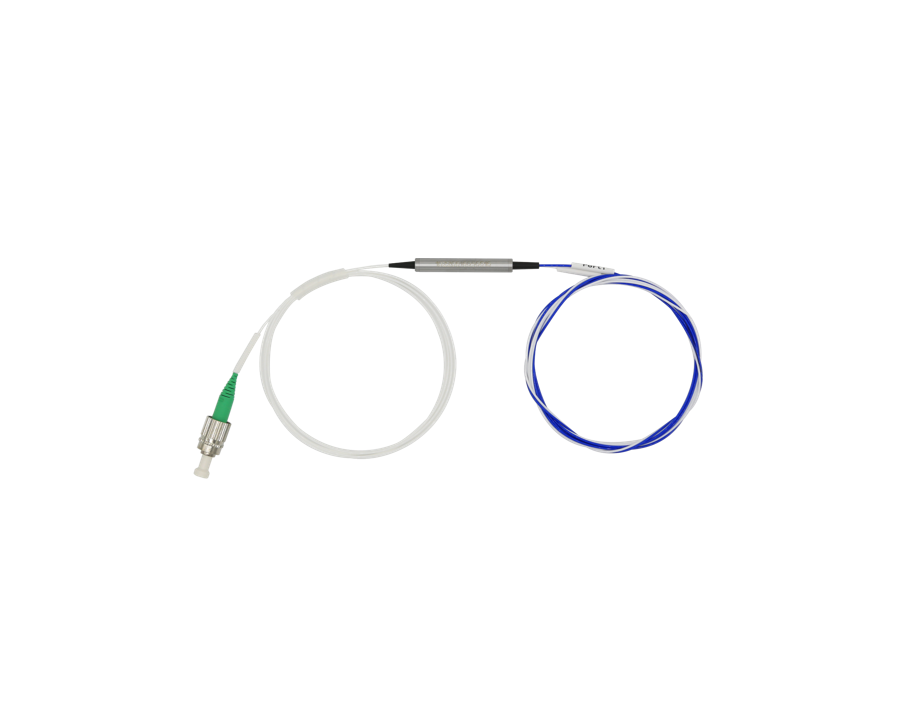

Polarized Beam Synthesizer, Beam Splitter

To combine two beams of orthogonally polarised light (e.g. TE and TM modes) into a single beam, or to reverse the separation of the polarised components of a beam; to divide a beam of light into multiple beams in a specific ratio (e.g. 50:50, 1:99), or to reverse the combining of beams.

Specification

Resources

Technical Specification

Type	Value
Operating Wavelength (nm)	1310 or 1550
Bandwidth (nm)	±40
Typ. Insertion Loss (at 23℃)	≤0.4
Max. Insertion Loss (at 23℃)	≤0.6
Extinction Ratio (at 23℃) (dB)	≥22
Return Loss (dB)	≥50
Fiber Type	Panda fiber
Package Dimension (mm)	φ5.5×L38
Maximum Power Handling (mW)	≤300
Operating Temperature (℃)	-0 to +70
Storage Temperature (℃)	-40～+85

*Above specifications are for devices without the connectors.

*For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.

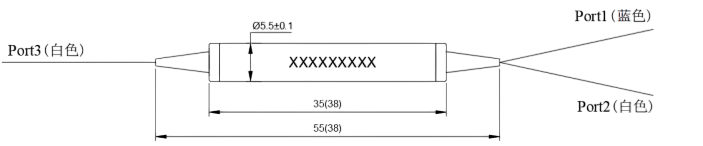

Dimension(mm)

Ordering Information

PMIS

Wavelength

Axis Alignment

Pigtail Type

Length

Connector

1310=1310nm

1550=1550nm

F=Fast Axis Blocked

B=Both Axis Working

1=250um

2=900um loose tube

3=3mm loose tube

H=0.5m

8=0.8m

1=1.0m

5=1.5m

2=2m

0=None

1=FC/UPC

2=FC/APC

3=SC/APC

4=SC/UPC

5=LC/PC

If you need more support , Please contact us .
