PM Isolator

It is an optical device designed for polarisation-sensitive optical systems, combining the unidirectional transmission characteristics of an optical isolator (Isolator) with the polarisation-maintaining capability of Polarization-Maintaining (PM) technology. Its core function is to allow forward light to pass through while blocking reflected light in the reverse direction and ensuring that the polarisation of light (e.g. linear polarisation direction) does not change.

Specification

Resources

Features

High return loss

Low insertion loss

No plastic optical path

Low polarization dependent loss

Application

Fiber amplifier

Optical fiber LAN

Fiber testing system

Telecommunication network

Fiber optic cable TV network

Technical specification

Type	Single Grade
Operating Wavelength (nm)	1310 or 1550
Bandwidth (nm)	±15	±15
Peak isolation (dB)	40	50
Isolation (at 23℃) (dB)	≥28	≥40
Typ. Insertion Loss (at 23℃)	0.4	0.6
Insertion Loss (at-5 ~ +70 ℃)	≤0.6	≤0.8
Extinction Ratio (dB)	≥20
Return Loss (dB)	≥50
Fiber Type	1310nm :PM 1310 Panda Fiber;1550nm:PM1550 Panda Fiber
Package Dimension (mm)	φ5.5×L35
Maximum Power Handling (mW)	≤300
Axis Alignment	Both axis work
Operating Temperature (℃)	-0 to +70
Storage Temperature (℃)	-40～+85

*Above specifications are for devices without the connectors.

*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

*The PM fiber and the connector key are aligned to the slow axis. And for F type, fast axis is blocked, for type B ; both axis is working

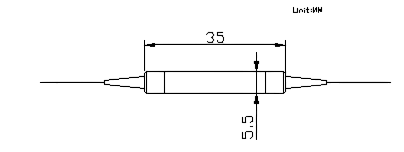

Product Dimensions

Ordering information HC-PMIS-A-B-C-D-E-F

PMIS

Wavelength

Type

Axis Alignment

Pigtail Type

Length

Connector

1310=1310nm

1550=1550nm

S=Single stage

D=Dual Stage

F=Fast Axis Blocked

B=Both Axis Working

1=250um

2=900um loose tube

3=3mm loose tube

H=0.5m

8=0.8m

1=1.0m

5=1.5m

2=2m

0=None

1=FC/UPC

2=FC/APC

3=SC/APC

4=SC/UPC

6=LC/PC

If you need more support , Please contact us .
