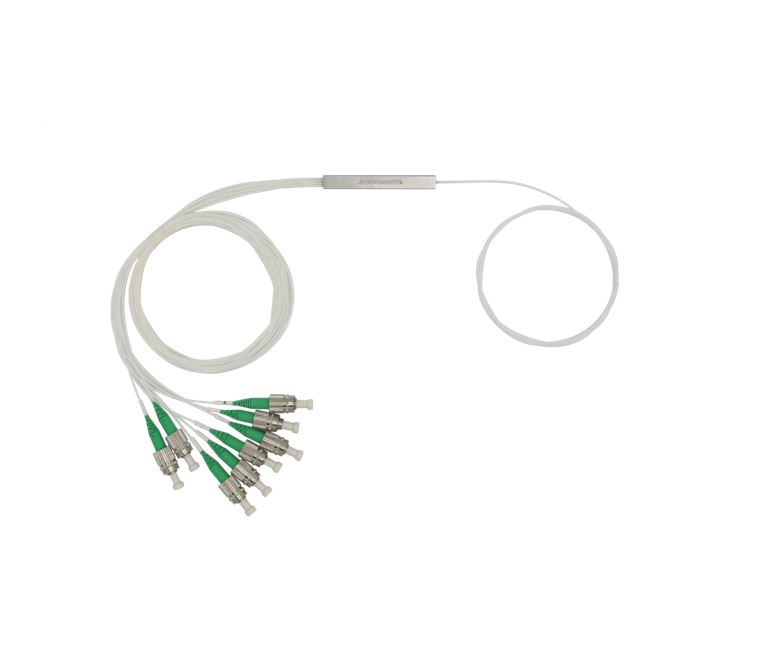

PM PLC

PM PLC

It is capable of maintaining the stability of the State of Polarization (SOP, State of Polarization) during optical signal processing. It combines the high integration advantages of planar optical waveguide (PLC) with the polarisation control capability of polarisation preserving (PM)** technology, and is suitable for polarisation-sensitive high-end optical communication and sensing systems.

contact us：lina@glhcoptical.com

Specification
Resources



 Feature



Low insertion loss

Polarization insensitive

High stability and reliability



Application



Test equipment

Cable television network

Optical fiber to the home

Passive optical network (E/GPON)

Mobile, telecommunications network

Local area network (LAN) and metropolitan area network



      Technical specification



Parameters

1×2

1×3

1×4

1×6

1×8

1×12

1×16

1×24

1×32

1×64

Operating Wavelength  (nm)

1310 or 1550 or Special

Insertion Loss (dB)（Typical）

≤3.8

≤6.2

≤7

≤9.4

≤10.2

≤12.6

≤13.5

≤15.8

≤16.6

≤21

Insertion Loss (dB)（max）

≤4.0

≤6.5

≤7.3

≤9.7

≤10.5

≤13

≤14

≤16

≤17

≤21.5

Loss Uniformity  (dB)

≤0.3

≤0.5

≤0.5

≤0.6

≤0.5

≤0.8

≤0.8

≤1.2

≤1.0

≤1.5

ER (dB)

≥20

≥20

≥20

≥20

≥20

≥20

≥18

≥18

≥18

≥18

Return Loss (dB)

≥50

Directivity (dB) Min

≥50

Fiber Type

PM1310 or PM1550 or Special

Operating Temperature (℃)

-5～70

Storage Temperature (℃)

-40～85

Maximum Power Handling (mW)

500

Package Dimensions(mm)

Special

*Above specifications are for devices without the connectors.

*For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.

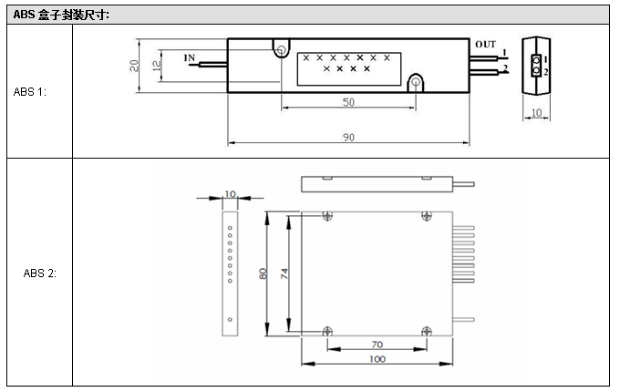

Package box dimension



Item

1X2

1X3

1X4

1X6

1X8

1X12

1X16

1X24

1X32

1X64

（L*W*H）

40*4*4

50*7*4

60*7*4

（L*W*H）

60*7*4

60*12*4

80*20*6

（L*W*H）

100*80*10

120*80*18

141*115*18







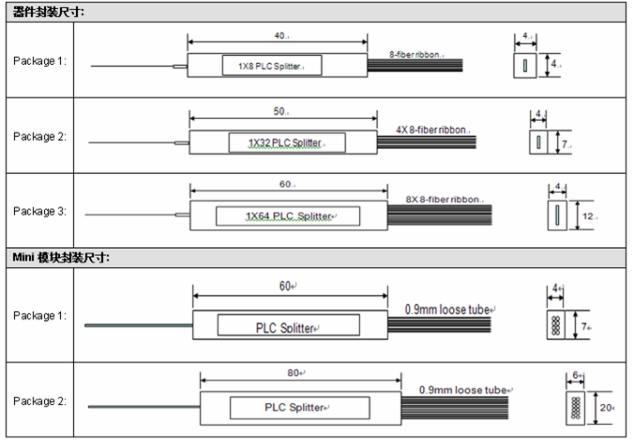

Product dimension













      Ordering information  HC-PMPLC-1×N-A-B-C-D-E-F-G





A

B

C

D

E

F

G

PMPLC

Wavelength range

ports

Fiber Type

Package Type

Pigtail Type

Length

Connector


1310=1310nm

1550=1550nm

S= Special





0102=1x2

0104=1x4

0108=1x8

0116=1x16

0132=1x32

0164=1x64



1=PM1310

2=PM1550



A=Bare fiber

B=miniature

C=box

D=Chip type

E=Pallet type

F=RACK

S=Special

0=Bare fiber

1=900um loose tube

2=900um Tight casing

3=2.0mmoptical fiber

4=3.0mmoptical fiber

0=0.5m

1=1m

2=1.5m

3=2m

4=3m

5=4m

S=special

0=none

1=SC/PC

2=SC/APC

3=FC/PC

4=FC/APC

5=ST/PC

6=LC/PC

7=LC/APC

8=E2000

S=Special







If you need more support , Please contact us .
