PM TAP PD

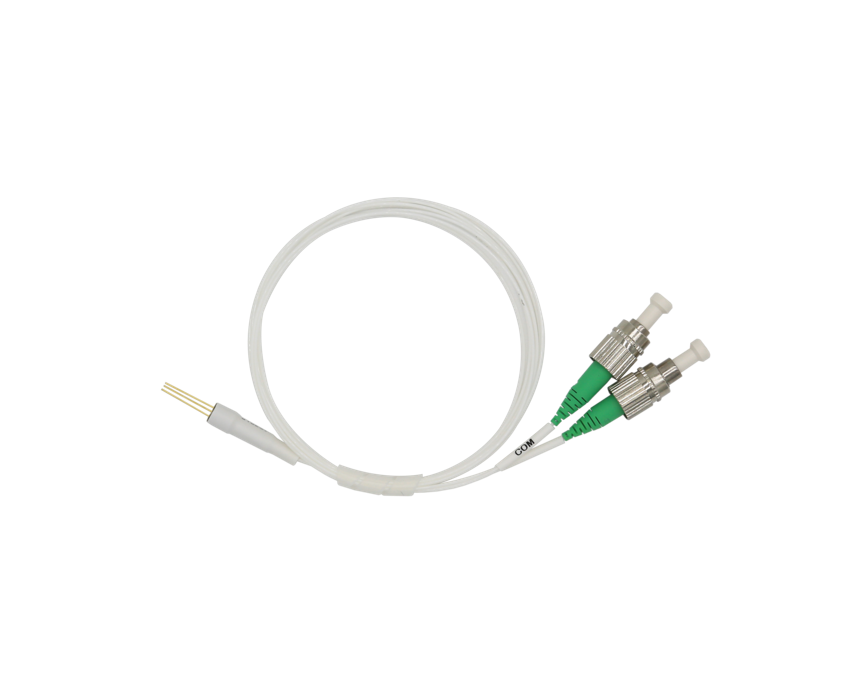

1/99 TAP PD Spec
Describe:
1550nm,1%,900um,PM Panda Fiber,1M,FC/APC
Reliability and RoHS
RoHS6 compliance
Telcordia GR-1209 core
Telcordia GR-1221 core
Technical Specification
|
Parameters |
Specifications |
Unit |
|
Working Wavelength |
1510~1610 |
nm |
|
Insertion Loss |
<1.0 |
dB |
|
Responsivity |
>7 |
mA/W |
|
Extinction Ratio at(@23℃) |
>18 |
dB |
|
Dark Current(At 25℃, -5V bias) |
≤10 |
nA |
|
Reverse Voltage |
≤25 |
V |
|
Forward Current |
≤10 |
mA |
|
Return Loss |
>40 |
dB |
|
Maximum Power Handing |
300 |
mW |
|
Operating Temperature |
-0~+70 |
℃ |
|
Storage Temperature |
-40~+85 |
℃ |
|
Connector Type |
LC/PC |
|
|
Fiber Type |
PM1550 with 900um loose tube |
|
|
Fiber Length |
1+/-0.03 |
m |
|
Package size |
Φ6.1*L25 |
mm |
Note：The IL value is tested with connector .
Dimension (mm)
1. Casing color: All are white
2. Insert the number ring of the port identifier on each casing (see the figure above).
3. The device body coat - 6mm heat shrink tube
4. Product name and SN should be on the heat shrink tube, as shown in the figure above. Product name: 01TAPD, SN is 6 digits (size 2, word spacing 0, segment spacing 25, double lines).
Packaging
- - Use anti-static lock pocket,120x80mm, 1pcs in each bag, data sheet is packed into the bag with the product
- -N/A Label is attached to the outside of each package. The label contains PN and SN
