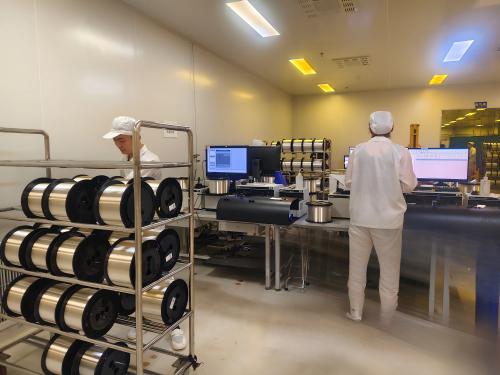

Product Description
Low water peak dispersion unshifted single-mode optical fiber (G.652.D) is applicable to transmission systems operating over the entire wavelength from 1260 to 1625nm, which maintains low attenuation at 1383nm, thus making full use of E-band (1360-1460nm).
It optimizes attenuation and dispersion across the entire wavelength from1260 to 1625nm, reduces bending loss at the wavelength of 1625nm, provides more bandwidth resources for backbone, metropolitan area , and access networks.
Product Standard
ITU-T recommendation G.652.D
IEC 60793-2-50 B1.3 optical fiber specifications.
Product Characteristics
Designed for operation over the full optical spectrum from 1260 to 1625nm, hence the transmission capacity is increased. Outstanding optical performance supporting high-speed transmission technologies such as DWDM and CWDM. Accurate geometrical parameters ensure low splicing loss and high splicing efficiency. Excellent PMD satisfying high bit-rate and long distance transmission requirements.
|
Optical Characteristics |
|||
|
Characteristics |
Units |
Value |
|
|
Attenuation |
1310nm 1383nm 1550nm 1625nm |
dB/km |
≤0.35 ≤0.34 ≤0.21 ≤0.24 |
|
Attenuation vs. Wavelength |
1285-1330nm vs. 1310nm 1525-1575nm vs.1550nm |
dB/km dB/km |
≤0.04 ≤0.03 |
|
Attenuation Discontinuity |
1310nm 1550nm |
dB dB |
≤0.04 ≤0.04 |
|
Attenuation Nonuniformity |
1310nm 1310nm |
dB/km dB/km |
≤0.05 ≤0.05 |
|
Attenuation of bidirectional differential |
1310nm 1550nm |
dB/km dB/km |
≤0.05 ≤0.05 |
|
Zero Dispersion Wavelength |
|
nm |
1300-1324 |
|
Zero Dispersion Slope |
|
ps/(nm2.km) |
0.073-0.092 |
|
Dispersion within the wavelength range |
1550nm 1625nm |
ps/(nm.km) ps/(nm.km) |
≤18 ≤22 |
|
Maximum PMD of a single Fiber |
|
ps/(km1/2) |
≤0.2 |
|
Cable Cutoff Wavelength λcc |
|
nm |
≤1260 |
|
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
|
Effective Group Refraction Index |
1310nm 1550nm |
|
1.467 1.468 |
|
Geometrical Characteristics |
|||
|
Characteristics |
Units |
Value |
|
|
Cladding Diameter |
um |
125±0.7 |
|
|
Core/package concentricity deviation |
um |
≤0.6 |
|
|
Cladding Non-Circularity |
% |
≤1 |
|
|
Coating Diameter |
um |
245±10 |
|
|
Coating Non-Circularity |
% |
≤4 |
|
|
Coating/cladding concentricity deviation |
um |
≤12.5 |
|
|
Warpage |
m |
≥4 |
|
|
Environmental Characteristics（1310nm、1550nm、1625nm） |
|||
|
CyclingTemperature cycling additional decay |
－60℃～+85℃ |
dB/km |
≤0.03 |
|
Additional degradation due to damp heat aging |
85℃，RH85%，30 days |
dB/km |
≤0.03 |
|
Additional degradation due to water immersion aging |
23℃，30 days |
dB/km |
≤0.03 |
|
Additional degradation due to dry heat aging |
85℃，30 days |
dB/km |
≤0.03 |
|
Optical Fiber Mechanical Characteristics |
|||
|
Characteristics |
Units |
Value |
|
|
Optical fiber screening stress |
|
N % Kpsi |
≥9.0 ≥1.0 ≥100 |
|
Coating mechanical peel force |
Peak Force |
N |
1.0-8.9 |
|
average value |
N |
1.0-5.0 |
|
|
Tensile Strength |
Weibull Probability 50% Weibull Probability 15%
|
Gpa Gpa |
≥4.00 ≥3.20 |
|
Dynamic Fatigue Parameter |
|
|
≥20 |
|
30mm radius, 100 turns |
1550nm、1625nm |
dB |
≤0.05 |
|
16 mm radius, 1 turn |
1550nm、1625nm |
dB |
≤0.05 |
