Optical Bypass Switch Equipment
Features
Transparent transmission for optical physical links
Supports gigabit and gigabit network
Multiple heartbeat patterns
Low insertion loss, high stability instantaneous switch
Application
PDH, SDH line protection system
DWDM line protection system
Power communication line protection system
CATV line protection system
Technical Parameters
|
parameter |
Unit |
Indicators |
|
|
|
|
Single mode |
Multimode |
|
Test the wavelength |
nm |
1310 / 1550 |
850 |
|
Insertion loss |
dB |
≤ 1.5 |
≤ 1.5 |
|
Return loss |
dB |
≥ 45 |
≥30 |
|
Crosstalk |
dB |
≥ 55 |
≥ 35 |
|
Wavelength dependent loss |
dB |
≤ 0.25 |
≤ 0.25 |
|
Polarization dependent loss |
dB |
≤ 0.1 |
≤ 0.1 |
|
Switch time |
ms |
＜ 10 |
＜ 10 |
|
Optical fiber type |
|
SM（9/125um） |
MM（62.5/125um） |
|
Optical connector |
|
LC/PC |
|
|
Monitor the port |
|
RJ45、RS-232 |
|
|
Working power supply |
V |
AC: 85 ～ 264（50/60Hz）Or DC: 36 ～ 72 |
|
|
Power consumption |
W |
＜ 5 |
|
|
Working temperature |
℃ |
-5 ～ 55 |
|
|
Storage temperature |
℃ |
-20 ～ 75 |
|
|
The case type |
|
1U standard 19 "rack（483×220×44mm） |
|

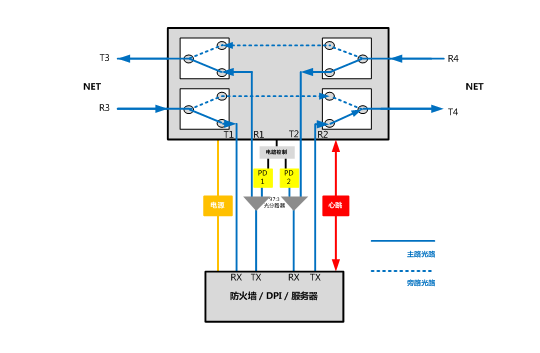

light path principle

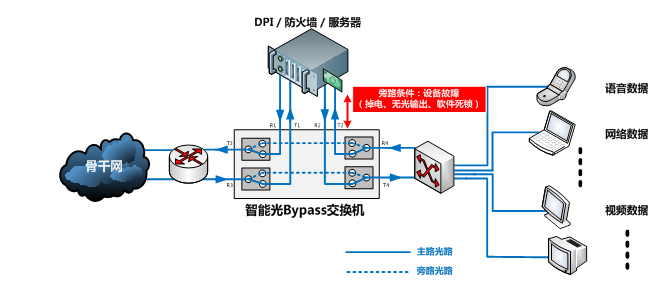

Application solutions
Order information HC－OBP－A－B－C－D－E－F－G
|
A |
B |
C |
D |
E |
F |
G |
|
Structure |
Working wavelength |
Protect the way |
To protect the imlet |
Number of light detection paths |
Heartbeat/com munication interface |
The power supply mode |
|
1: 1U rack type |
3: 13/15 single mode |
1: useing |
1:1 road |
0: No ground light |
1:USB |
1: USB power supply |
|
5: Insert disc |
4: More than 85 die |
3: Power loss + passive heartbeat |
2:2 road |
1: R1, R2 detection |
2:RS232 |
2:AC85~265V |
|
X: Other |
X: Other |
4: Power loss + active heartbeat |
4: 4 road |
2:R1-R4 detection |
3:RJ45 |
3:DC36~72V |
|
|
|
5: Detecting light + passive heartbeat |
X: Other |
X: Other |
4:RS232/RJ45 |
4: Double AC |
|
|
|
6: Light detection + active heartbeat |
|
|
5:RS485 |
5: Double DC |
|
|
|
X: Other |
|
|
6:RS485/RJ45 |
6: Hybrid AC/DC |
If you need more support , Please contact us .
